Structural · S-WRRFR

Column Base Plate at Concrete Pedestal and Spread Footing

Materials

Concrete Steel

Elements

Columns Foundations / Footings Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

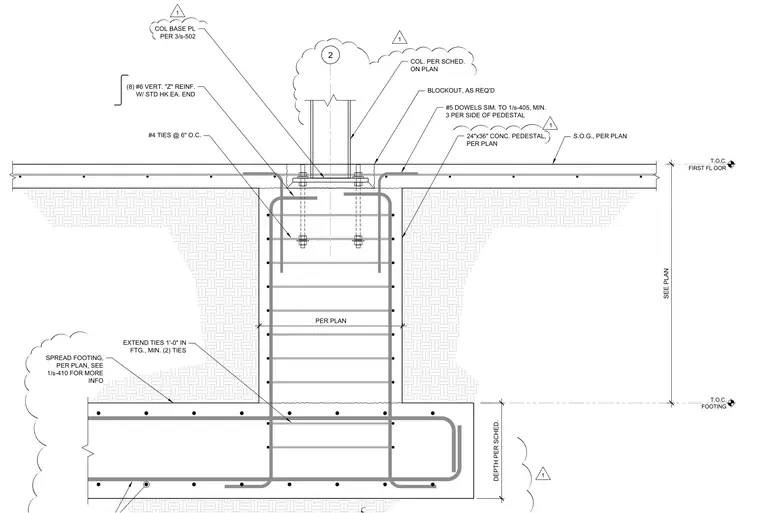

A structural steel column connects to a twenty-four by thirty-inch concrete pedestal via a base plate detailed per sheet three of S-502. The pedestal is reinforced with eight number six vertical Z-bars with standard hooks at each end and number four ties at six inches on center, extending one foot into the spread footing with a minimum of two ties at the top of concrete. A slab on grade abuts the pedestal with a blockout as required, tied in with a minimum of three number five dowels per side. The concrete pedestal bears on a spread footing of depth per schedule, with foundation dimensions and column sizes sized per plan.
