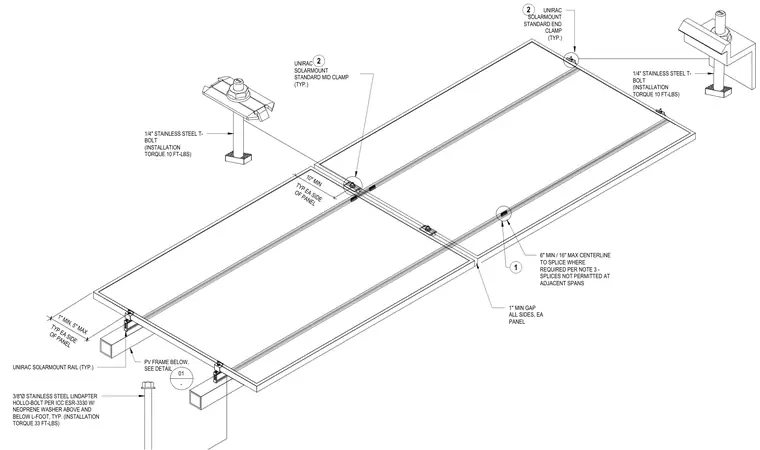

Photovoltaic panels mount onto Unirac SolarMount rails using standard mid clamps and end clamps secured by one-quarter-inch stainless steel T-bolts torqued to ten foot-pounds. Rails attach to the structural frame below using three-eighths-inch diameter stainless steel Lindapter Hollo-Bolts per ICC ESR-3330 with neoprene washers above and below the L-foot, installed to a torque of thirty-three foot-pounds. Panel placement requires a one-inch minimum gap on all sides of each panel with end clamps positioned ten inches minimum and one to five inches typical on each side of the panel. Rail splices occur six to sixteen inches maximum on center where required, avoiding adjacent spans.
1" MIN, 5" MAX TYP EA SIDE OF PANEL UNIRAC SOLARMOUNT STANDARD MID CLAMP (TYP.) 10" MIN 2 TYP EA SIDE OF PANEL UNIRAC SOLARMOUNT STANDARD END CLAMP (TYP.) 2 1/4" STAINLESS STEEL T- BOLT (INSTALLATION TORQUE 10 FT-LBS) 1/4" STAINLESS STEEL T- BOLT (INSTALLATION TORQUE 10 FT-LBS) 6" MIN / 16" MAX CENTERLINE TO SPLICE WHERE REQUIRED PER NOTE 3 - SPLICES NOT PERMITTED AT ADJACENT SPANS 1 UNIRAC SOLARMOUNT RAIL (TYP.) 3/8"Ø STAINLESS STEEL LINDAPTER HOLLO-BOLT PER ICC ESR-3330 W/ NEOPRENE WASHER ABOVE AND BELOW L-FOOT, TYP. (INSTALLATION TORQUE 33 FT-LBS) 01 - PV FRAME BELOW, SEE DETAIL 1" MIN GAP ALL SIDES, EA PANEL
