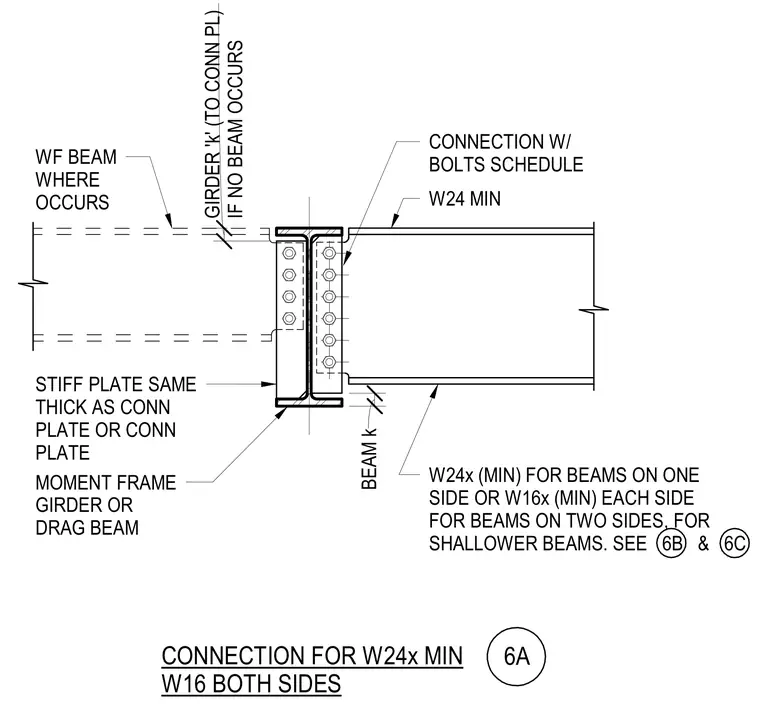

A wide-flange beam connects to a moment frame girder or drag beam using a bolted connection plate. A stiffener plate matching the thickness of the connection plate is provided on the opposite side of the girder web. The detail accommodates a W24 minimum beam when framing on one side, or W16 minimum on each side for beams framing on two sides. A wide-flange beam is also shown occurring on the opposite side per plan.
CONNECTION FOR W24x MIN W16 BOTH SIDES STIFF PLATE SAME THICK AS CONN PLATE OR CONN PLATE W24x (MIN) FOR BEAMS ON ONE SIDE OR W16x (MIN) EACH SIDE FOR BEAMS ON TWO SIDES, FOR SHALLOWER BEAMS. SEE 6B & 6C MOMENT FRAME GIRDER OR DRAG BEAM CONNECTION W/ BOLTS SCHEDULE WF BEAM WHERE OCCURS W24 MIN BEAM k 6A GIRDER 'k' (TO CONN PL) IF NO BEAM OCCURS
