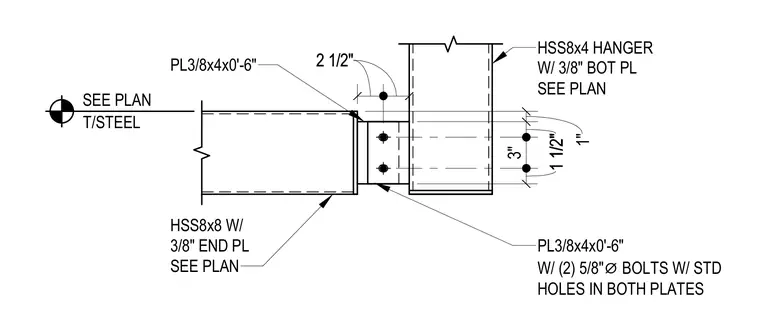

An HSS8x8 beam with a three-eighths-inch end plate connects to an HSS8x4 hanger equipped with a three-eighths-inch bottom plate. The connection is secured with two five-eighths-inch diameter bolts through three-eighths-inch by four-inch by zero-foot-six-inch splice plates featuring standard holes in both plates. The vertical hanger top of steel and beam layout dimensions are sized per plan.
2 1/2" 2 1/2" 1 1/2" 3" 1 1/2" 1" HSS8x8 W/ 3/8" END PL SEE PLAN PL3/8x4x0'-6" PL3/8x4x0'-6" W/ (2) 5/8" ⌀ BOLTS W/ STD HOLES IN BOTH PLATES HSS8x4 HANGER W/ 3/8" BOT PL SEE PLAN T/STEEL SEE PLAN
