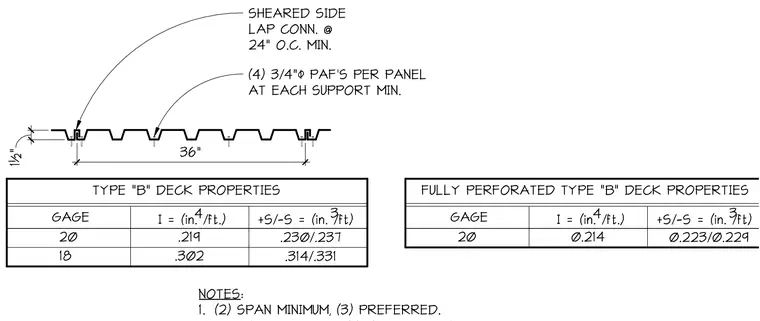

A one and one-half inch deep Type B roof metal deck profile spans thirty-six inches across supports. The metal deck panels are secured at each support with a minimum of four three-quarter inch diameter powder-actuated fasteners per panel. Sheared side lap connections are spaced at a maximum of twenty-four inches on center. Accompanying tables list section properties, including moment of inertia and section modulus, for both standard and fully perforated twenty-gauge and eighteen-gauge decks. General notes specify a two-span minimum and three-span preferred layout.
I = (in. /ft.) TYPE "B" DECK PROPERTIES 18 20 GAGE 4 3 +S/-S = (in. /ft) .219 .230/.237 .302 .314/.331 I = (in. /ft.) FULLY PERFORATED TYPE "B" DECK PROPERTIES 20 GAGE 4 3 +S/-S = (in. /ft) 0.214 0.223/0.229 1½" SHEARED SIDE LAP CONN. @ 24" O.C. MIN. (4) 3/4", PAF'S PER PANEL AT EACH SUPPORT MIN. NOTES: 1. (2) SPAN MINIMUM, (3) PREFERRED. 36"
