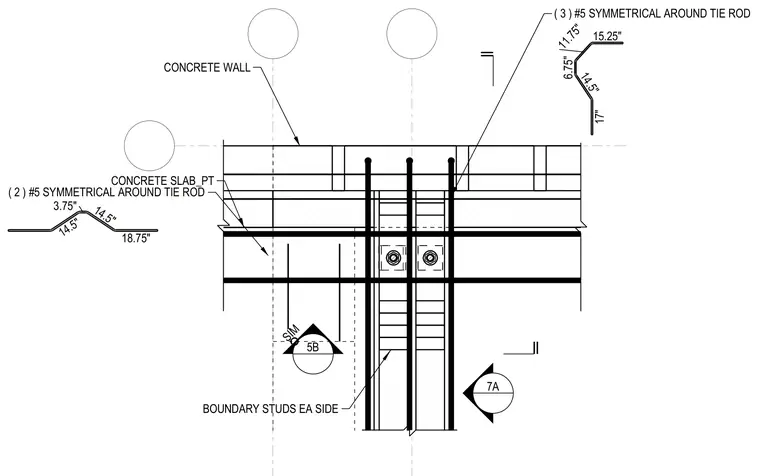

At the intersection of a concrete wall and a post-tensioned concrete slab, three number five reinforcing bars are placed symmetrically around the tie rod with dimensional segments of six and three-quarters inches, eleven and three-quarters inches, fifteen and a quarter inches, fourteen and a half inches, and seventeen inches. Two additional number five reinforcing bars are arranged symmetrically around the tie rod on the opposite side with dimensions measuring three and three-quarters inches, fourteen and a half inches, and eighteen and three-quarters inches. Boundary studs are positioned on each side of the wall connection.
( 3 ) #5 SYMMETRICAL AROUND TIE ROD 15.25" 11.75" 6.75" 14.5" 17" CONCRETE SLAB_PT ( 2 ) #5 SYMMETRICAL AROUND TIE ROD 18.75" 14.5" 3.75" 14.5" CONCRETE WALL 5B 7A SIM BOUNDARY STUDS EA SIDE
