Offset Post-Tensioned Beams at Concrete Columns

Materials

Concrete Reinforced Concrete

Elements

Columns Beams Floors / Slabs Arches Expansion / Control Joints Anchors / Embeds Reinforcing

Connections

Base Plate / Anchorage Rebar Splice / Development

About this detail

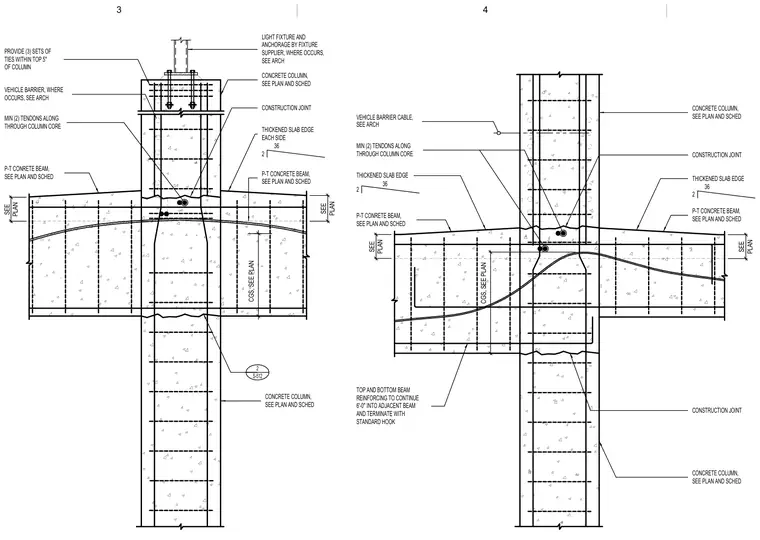

Post-tensioned concrete beams frame into a reinforced concrete column with offset beam alignments at the column core. A minimum of two post-tensioning tendons run continuously through the column core to maintain structural continuity. Top and bottom beam reinforcing extends six feet into the adjacent beam and terminates with a standard hook. Construction joints are detailed at the column interfaces above and below the beam connection. A thickened slab edge occurs on each side of the beam per plan and schedule. Three sets of ties are provided within the top five inches of the column, along with provisions for light fixture anchorages and vehicle barrier cables as coordinated with architectural drawings.
