A cross-laminated timber deck bears on a 4x pressure-treated sill plate anchored to a concrete retaining wall with recessed five-eighths-inch diameter by six-inch embedment anchor bolts at forty-eight inches on center. A compressible joint filler creates a two-inch gap separating the timber assembly from the adjacent concrete slab on grade. The cross-laminated timber deck remains unfastened to the sill plate. A concrete dowel ties the slab on grade to the retaining wall per reference detail 4/S50.

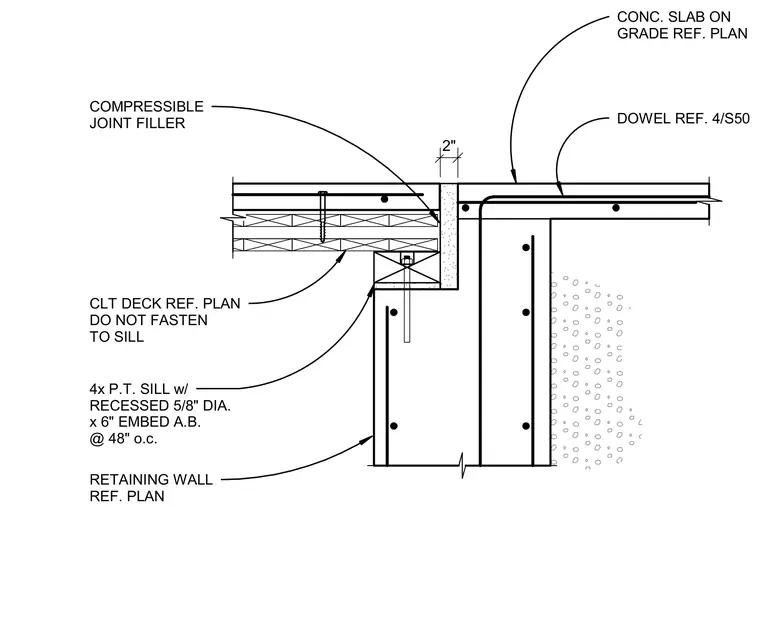

2" RETAINING WALL REF. PLAN COMPRESSIBLE JOINT FILLER CLT DECK REF. PLAN DO NOT FASTEN TO SILL 4x P.T. SILL w/ RECESSED 5/8" DIA. x 6" EMBED A.B. @ 48" o.c. CONC. SLAB ON GRADE REF. PLAN DOWEL REF. 4/S50
