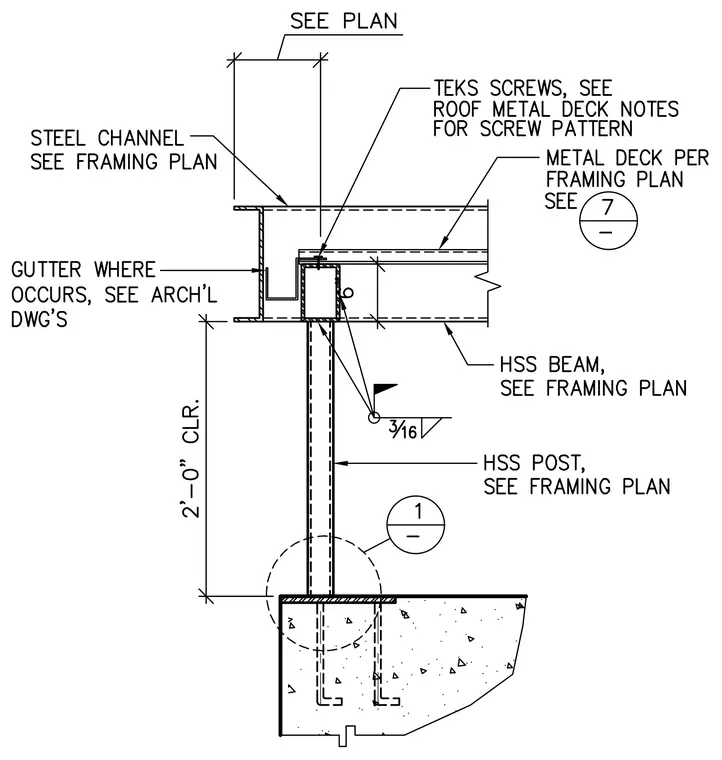

An HSS post supports an HSS beam sized per framing plan, carrying a metal deck secured with Teks screws. A steel channel is framed alongside the roof assembly, and a gutter is provided where required per architectural drawings. The HSS post is connected with a 3/16 inch fillet weld and provides a two-foot-zero-inch clearance above the supporting concrete structure. Anchor bolts embedded in the concrete anchor the base of the post assembly.
