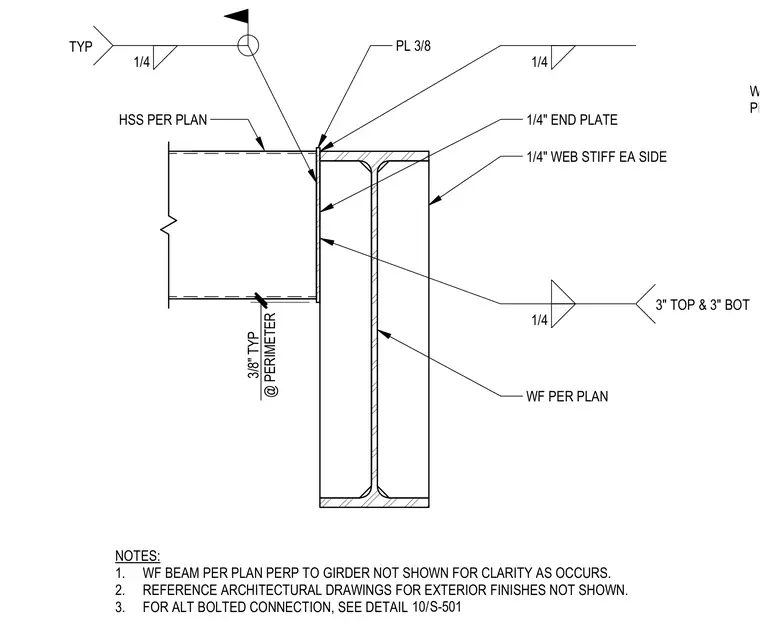

A hollow structural section beam frames into a wide flange girder sized per plan. A quarter-inch end plate is welded to the end of the hollow structural section with a three-eighths-inch fillet weld typical around the perimeter. Quarter-inch web stiffeners are attached to each side of the girder web opposite the connection. A quarter-inch fillet weld extends three inches at the top and bottom of the stiffeners.
WF GIRDER PER PLAN PL 3/8 1/4 TYP @ PERIMETER 3/8" TYP 1/4 3" TOP & 3" BOT 1/4" WEB STIFF EA SIDE 1/4" END PLATE 1/4 NOTES: 1. WF BEAM PER PLAN PERP TO GIRDER NOT SHOWN FOR CLARITY AS OCCURS. 2. REFERENCE ARCHITECTURAL DRAWINGS FOR EXTERIOR FINISHES NOT SHOWN. 3. FOR ALT BOLTED CONNECTION, SEE DETAIL / 10 S-501 WF PER PLAN HSS PER PLAN
