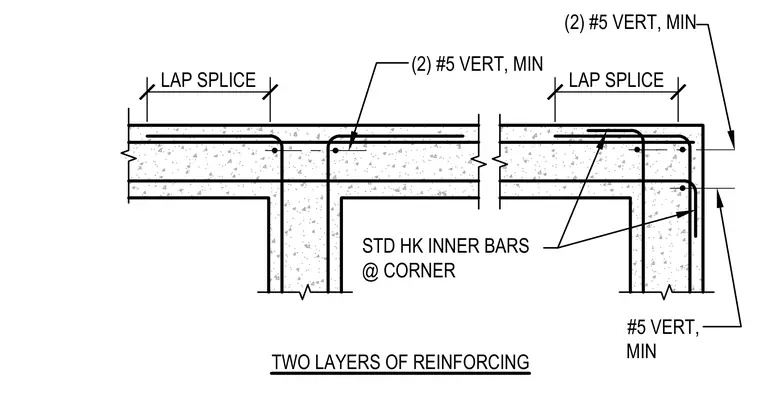

Concrete wall and footing intersections utilize two layers of vertical reinforcing with minimum number five bars. Standard hook inner bars are provided at corners with required lap splices along the wall runs.
LAP SPLICE LAP SPLICE TWO LAYERS OF REINFORCING (2) #5 VERT, MIN (2) #5 VERT, MIN STD HK INNER BARS @ CORNER #5 VERT, MIN
