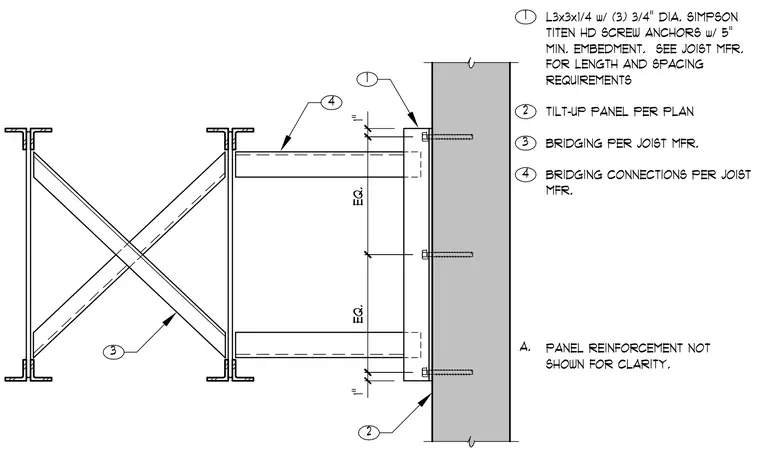

An L3x3x1/4 structural steel angle is anchored to a concrete tilt-up wall panel using three three-quarter-inch diameter Simpson Titen HD screw anchors with a five-inch minimum embedment. Joist bridging members connect to the steel angle according to the joist manufacturer specifications. Panel reinforcement is omitted for clarity.
1" EQ. 1" EQ. 1 2 3 4 1 2 4 3 A. L3x3x1/4 w/ (3) 3/4" DIA. SIMPSON TITEN HD SCREW ANCHORS w/ 5" MIN. EMBEDMENT. SEE JOIST MFR. FOR LENGTH AND SPACING REQUIREMENTS TILT-UP PANEL PER PLAN BRIDGING PER JOIST MFR. BRIDGING CONNECTIONS PER JOIST MFR. PANEL REINFORCEMENT NOT SHOWN FOR CLARITY.
