Structural · S-WPD83

Typical Concrete Ramp Connection

Materials

Concrete

Elements

Ramps Floors / Slabs Arches Anchors / Embeds Reinforcing

Connections

Welded Connection Rebar Splice / Development

About this detail

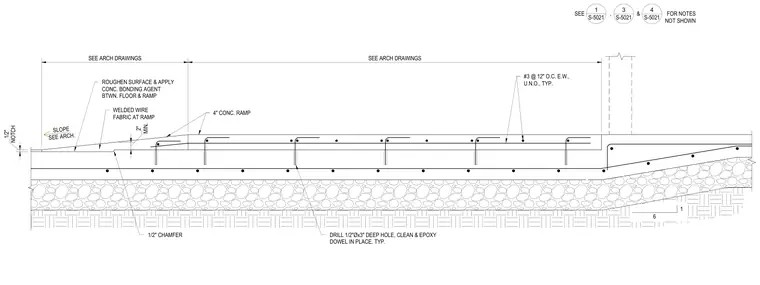

A four-inch concrete ramp bears on a prepared structural floor slab with a roughened surface and an applied concrete bonding agent. Welded wire fabric reinforces the ramp slab, while number three reinforcing bars spaced at twelve inches on center each way provide additional internal strength. Drilled half-inch diameter by three-inch deep holes receive epoxy-set dowels typical throughout the joint interface. A one-half-inch notch and a one-half-inch chamfer define the ramp edge transition, with slopes detailed per architectural drawings.
