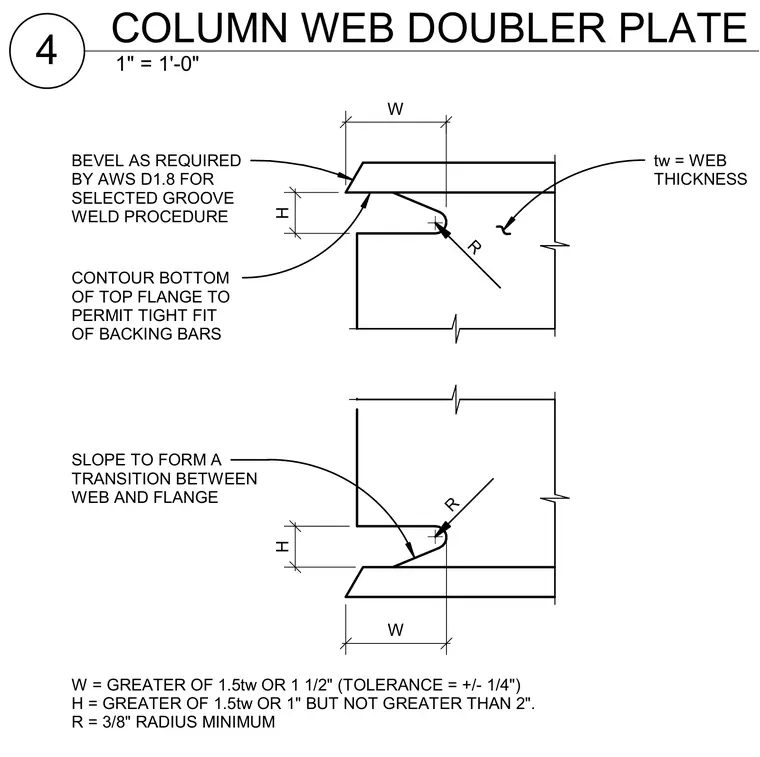

A structural steel column web requires specific cutouts and edge preparations to accommodate doubler plates and backing bars at moment connections. The bottom of the top flange is contoured to permit a tight fit of backing bars, while the weld access hole features a smooth transition radius with specified dimensions governed by the web thickness. Width W must be the greater of 1.5 times the web thickness or 1 1/2 inches with a plus or minus 1/4 inch tolerance, and height H must be the greater of 1.5 times the web thickness or 1 inch, not exceeding 2 inches. A minimum radius R of 3/8 inch is required at the base of the access hole, and the flange edge is beveled as required by AWS D1.8 for the selected groove weld procedure.
BEVEL AS REQUIRED BY AWS D1.8 FOR SELECTED GROOVE WELD PROCEDURE SLOPE TO FORM A TRANSITION BETWEEN WEB AND FLANGE CONTOUR BOTTOM OF TOP FLANGE TO PERMIT TIGHT FIT OF BACKING BARS tw = WEB THICKNESS W H H W R R W = GREATER OF 1.5tw OR 1 1/2" (TOLERANCE = +/- 1/4") H = GREATER OF 1.5tw OR 1" BUT NOT GREATER THAN 2". R = 3/8" RADIUS MINIMUM 1" = 1'-0" 4 COLUMN WEB DOUBLER PLATE
