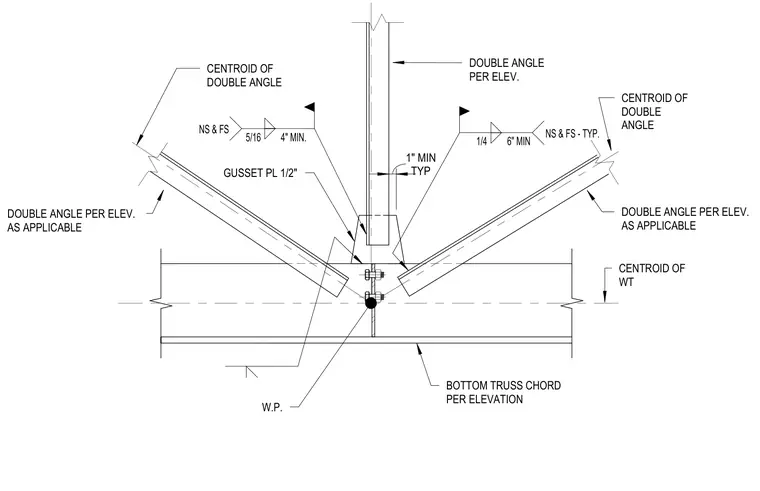

Double angle web members frame into a bottom truss chord made from a structural WT section with a one-half-inch thick gusset plate. The diagonal double angles are welded to the gusset plate with five-sixteenths inch fillet welds on the near side and far side, with a four inch minimum length. A vertical double angle member connects to the gusset plate using one-quarter inch fillet welds on the near side and far side, with a six inch minimum length and a one inch typical clearance. The members align at the work point with their centroids meeting at the designated intersection.
BOTTOM TRUSS CHORD PER ELEVATION W.P. 1/4 6" MIN NS & FS - TYP. DOUBLE ANGLE PER ELEV. AS APPLICABLE DOUBLE ANGLE PER ELEV. AS APPLICABLE CENTROID OF DOUBLE ANGLE CENTROID OF WT CENTROID OF DOUBLE ANGLE 5/16 4" MIN. NS & FS DOUBLE ANGLE PER ELEV. TYP 1" MIN GUSSET PL 1/2"
