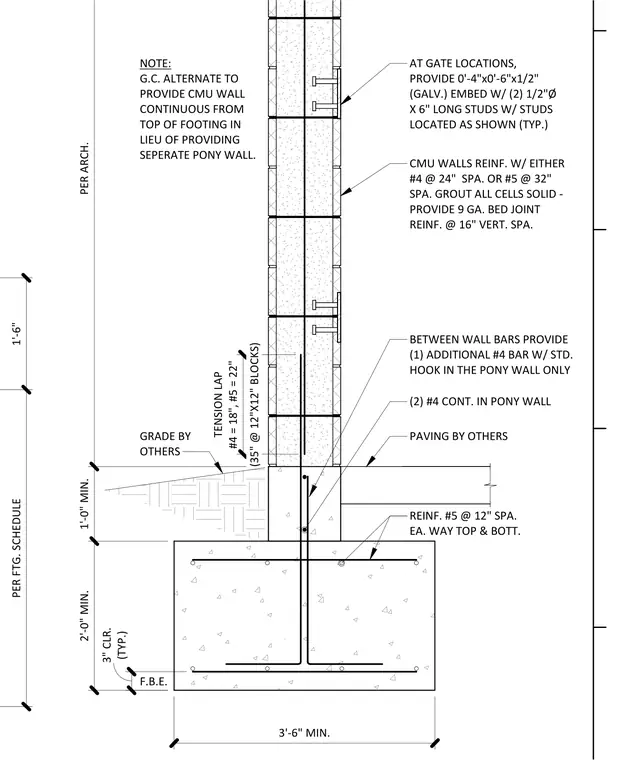

Concrete footing with a minimum width of 3 feet 6 inches, reinforced with number 5 bars at 12 inches on center each way, top and bottom, with 3 inches of clear cover. Pony wall atop the footing contains two continuous number 4 bars and an additional number 4 bar with a standard hook. CMU wall above is reinforced with either number 4 bars at 24 inches on center or number 5 bars at 32 inches on center, with all cells grouted solid and 9 gauge bed joint reinforcement at 16 inches vertical spacing. Gate locations include a 4 inch by 6 inch by 1/2 inch galvanized embed plate with two 1/2 inch diameter by 6 inch long studs. General contractor alternate allows for the CMU wall to be constructed continuously from the top of the footing, eliminating the separate pony wall.
Text on the drawing
CONC. SLAB ON GRADE PER PLAN F.F.E. 1/2" EXP. JOINT W/ REMOVABLE CAP & SEALANT REINF. PER FOOTING SCHEDULE DELAY POUR REINF. PER FOOTING SCHEDULE GUSSET PL. BY OTHERS B.R.B. BY OTHERS AT BASE PLATE LOCATIONS, DROP CONTINUOUS BARS IN LONGITUDINAL DIRECTION TO COORD. W/ SHEAR LUGS - DO NOT CUT BARS AT LUGS 1'-6" PER FTG. SCHEDULE (TYP.) 3" CLR. DOWELS MATCHING TOP REINF. SIZE & QUANTITY -FULLY DEVELOP EA. WAY F.B.E. REINF. #5 @ 12" SPA. EA. WAY TOP & BOTT. REINF. #5 @ 12" SPA. EA. WAY TOP & BOTT. 3'-6" MIN. PER ARCH. 1'-0" MIN. 2'-0" MIN. (TYP.) 3" CLR. GRADE BY OTHERS PAVING BY OTHERS F.B.E. CMU WALLS REINF. W/ EITHER #4 @ 24" SPA. OR #5 @ 32" SPA. GROUT ALL CELLS SOLID - PROVIDE 9 GA. BED JOINT REINF. @ 16" VERT. SPA. AT GATE LOCATIONS, PROVIDE 0'-4"x0'-6"x1/2" (GALV.) EMBED W/ (2) 1/2"Ø X 6" LONG STUDS W/ STUDS LOCATED AS SHOWN (TYP.) (2) #4 CONT. IN PONY WALL (35" @ 12"X12" BLOCKS) TENSION LAP #4 = 18", #5 = 22" BETWEEN WALL BARS PROVIDE (1) ADDITIONAL #4 BAR W/ STD. HOOK IN THE PONY WALL ONLY NOTE: G.C. ALTERNATE TO PROVIDE CMU WALL CONTINUOUS FROM TOP OF FOOTING IN LIEU OF PROVIDING SEPERATE PONY WALL.
