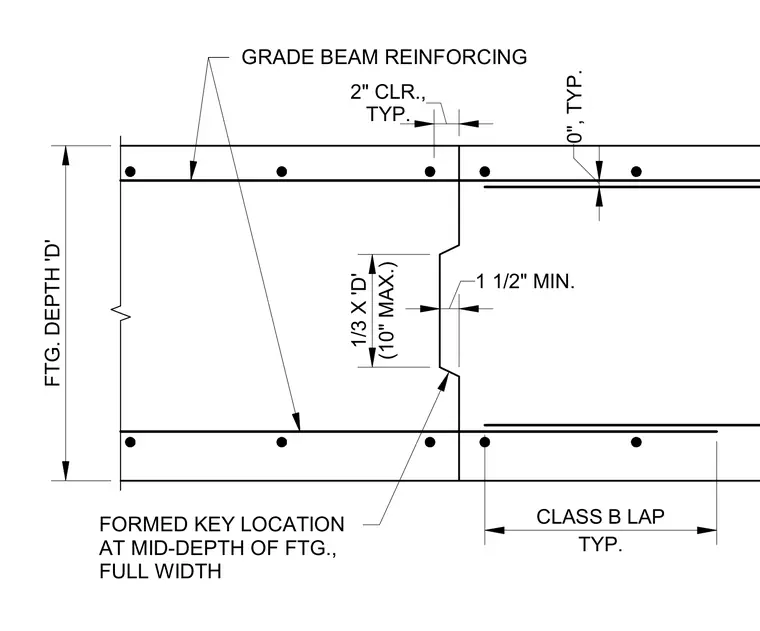

A reinforced concrete grade beam features continuous longitudinal reinforcing bars located at the top and bottom with a typical two-inch clearance. A full-width formed key is positioned at the mid-depth of the footing, with a height of one-third the footing depth up to a maximum of ten inches and a minimum depth of one and one-half inches. Splices in the reinforcing bars utilize a typical Class B lap length. Footing depth is designated as variable D with standard construction tolerances.
FTG. DEPTH 'D' 1 1/2" MIN. 0", TYP. FORMED KEY LOCATION AT MID-DEPTH OF FTG., FULL WIDTH GRADE BEAM REINFORCING (10" MAX.) 1/3 X 'D' TYP. CLASS B LAP TYP. 2" CLR.,
