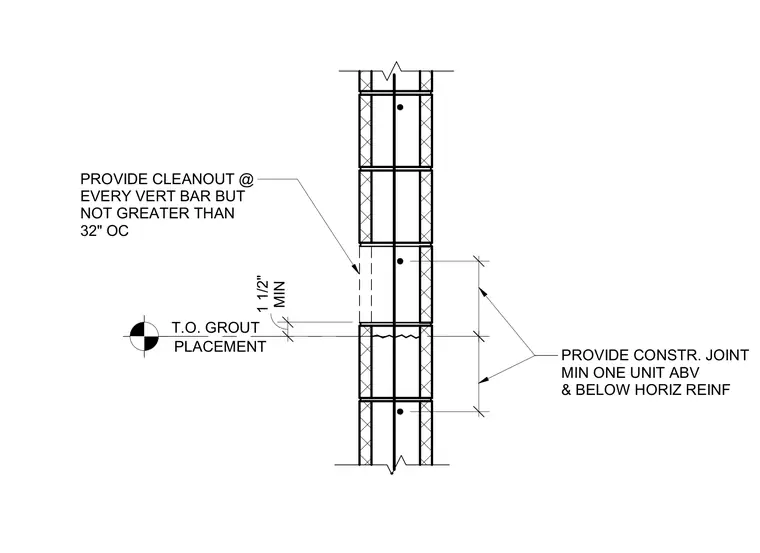

A horizontal construction joint occurs in a concrete masonry unit wall with vertical and horizontal reinforcement. A cleanout is required at every vertical bar but not greater than thirty-two inches on center. The construction joint must be located a minimum of one unit above and below the horizontal reinforcement. The top of grout placement sits one and one-half inches minimum below the construction joint.
PROVIDE CLEANOUT @ EVERY VERT BAR BUT NOT GREATER THAN 32" OC PROVIDE CONSTR. JOINT MIN ONE UNIT ABV & BELOW HORIZ REINF MIN 1 1/2" PLACEMENT T.O. GROUT
