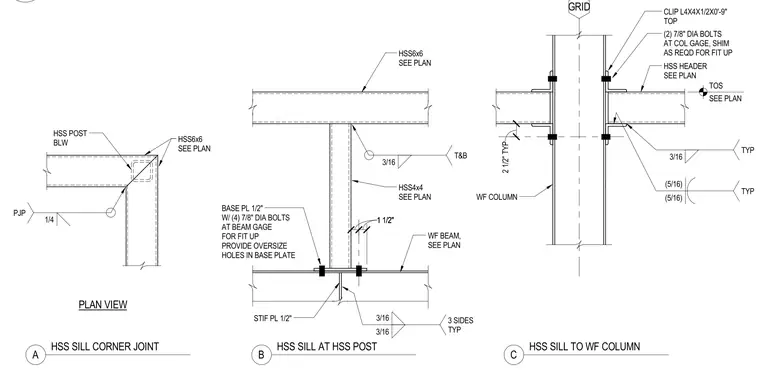

Clerestory roof framing connections include an HSS sill corner joint, an HSS sill at an HSS post, and an HSS sill to wide-flange column connection. The corner joint utilizes an HSS post below with a 1/4-inch partial joint penetration weld. The HSS sill framing connects to an HSS6x6 and HSS4x4 with a 1/2-inch base plate fastened by four 7/8-inch diameter bolts at the beam gauge, featuring oversized holes for fit-up and a 1/2-inch stiffener plate welded with three-sided 3/16-inch fillets. The wide-flange column connection incorporates L4x4x1/2 by 0'-9" clip angles at the top secured by two 7/8-inch diameter bolts at the column gauge with shims as required, along with 5/16-inch fillet welds and 3/16-inch typical welds tying the HSS header to the column flange.
BASE PL 1/2" W/ (4) 7/8" DIA BOLTS AT BEAM GAGE FOR FIT UP PROVIDE OVERSIZE HOLES IN BASE PLATE HSS4x4 SEE PLAN HSS6x6 SEE PLAN WF BEAM, SEE PLAN STIF PL 1/2" 3/16 T&B 1 1/2" 1 1/2" 3/16 3/16 3 SIDES TYP 1/4 PJP HSS6x6 SEE PLAN HSS POST BLW (2) 7/8" DIA BOLTS AT COL GAGE, SHIM AS REQD FOR FIT UP CLIP L4X4X1/2X0'-9" TOP WF COLUMN HSS HEADER SEE PLAN 2 1/2" TYP 3/16 TYP (5/16) (5/16) TYP GRID PLAN VIEW A HSS SILL CORNER JOINT B HSS SILL AT HSS POST C HSS SILL TO WF COLUMN TOS SEE PLAN
