Basement Wall Section at Footing and Slab

Elements

Walls Floors / Slabs Foundations / Footings Expansion / Control Joints

About this detail

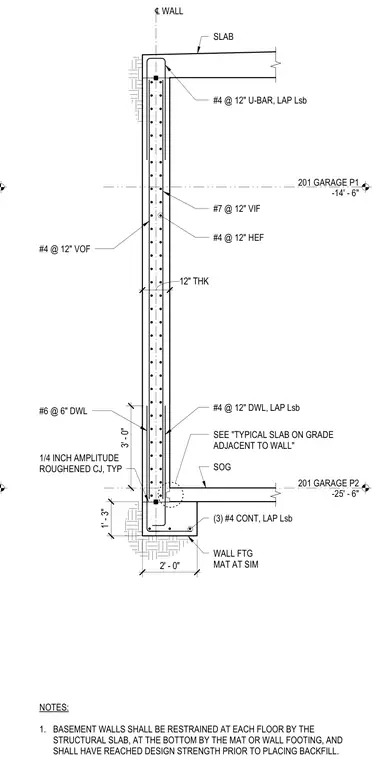

This structural section details a twelve-inch thick concrete basement wall bearing on a wall footing and restrained at the top by a structural slab. The twelve-inch wall contains number seven vertical inside face bars at twelve inches on center, number four vertical outside face bars at twelve inches on center, and number four horizontal exterior face bars at twelve inches on center. A typical one-quarter inch amplitude roughened construction joint is specified at the base. Number six dowels at six inches on center tie the wall to the footing, while number four dowels at twelve inches on center lap into the adjacent slab on grade. Three continuous number four bars reinforce the two-foot wide by one-foot three-inch deep footing mat. Number four U-bars at twelve inches on center anchor the top of the wall into the structural slab at garage level P1.
