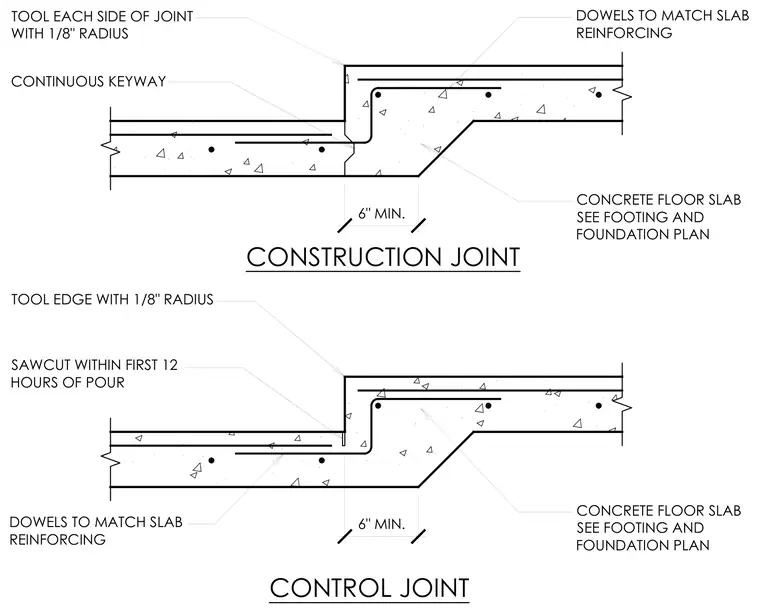

Concrete floor slab depression conditions transition via joints keyed for load transfer and reinforced with dowels matching the slab reinforcing. The construction joint features a continuous keyway with edges tooled to a 1/8 inch radius on each side. The control joint includes a sawcut performed within the first twelve hours of the pour along with a tooled edge of 1/8 inch radius. Both joint configurations maintain a minimum six inch dimension at the vertical drop and tie into the concrete floor slab per the footing and foundation plan.
SAWCUT WITHIN FIRST 12 HOURS OF POUR TOOL EDGE WITH 1/8" RADIUS CONCRETE FLOOR SLAB SEE FOOTING AND FOUNDATION PLAN CONCRETE FLOOR SLAB SEE FOOTING AND FOUNDATION PLAN CONTINUOUS KEYWAY TOOL EACH SIDE OF JOINT WITH 1/8" RADIUS DOWELS TO MATCH SLAB REINFORCING DOWELS TO MATCH SLAB REINFORCING CONSTRUCTION JOINT CONTROL JOINT 6" MIN. 6" MIN.
