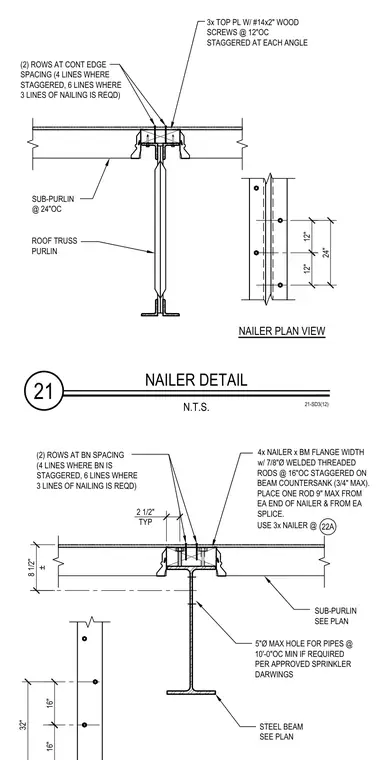

This structural detail shows a wood nailer secured to the top flange of a steel beam using seven-eighths inch diameter welded threaded rods at sixteen inches on center, staggered with a maximum three-quarter-inch countersink. Two rows of fasteners are specified at continuous edge spacing with up to six lines of nailing required depending on spacing. Sub-purlins spaced at twenty-four inches on center support the roof truss purlin assembly, including a three-inch top plate fastened with number fourteen by two-inch wood screws at twelve inches on center staggered at each angle. The underlying steel beam accommodates up to five-inch diameter maximum holes for pipes spaced at ten feet on center minimum as required per approved sprinkler drawings. A plan view of the nailer layout is provided showing twelve-inch and twenty-four-inch coordinate dimensions and edge clearances.
4x NAILER x BM FLANGE WIDTH w/ 7/8"Ø WELDED THREADED RODS @ 16"OC STAGGERED ON BEAM COUNTERSANK (3/4" MAX). PLACE ONE ROD 9" MAX FROM EA END OF NAILER & FROM EA SPLICE. 21 NAILER DETAIL N.T.S. 21-SD3(12) 5"Ø MAX HOLE FOR PIPES @ 10'-0"OC MIN IF REQUIRED PER APPROVED SPRINKLER DARWINGS SUB-PURLIN SEE PLAN 8 1/2" ± STEEL BEAM SEE PLAN 16" 16" 32" 3x TOP PL W/ #14x2" WOOD SCREWS @ 12"OC STAGGERED AT EACH ANGLE SUB-PURLIN @ 24"OC ROOF TRUSS PURLIN (2) ROWS AT CONT EDGE SPACING (4 LINES WHERE STAGGERED, 6 LINES WHERE 3 LINES OF NAILING IS REQD) NAILER PLAN VIEW 12" 12" 24" USE 3x NAILER @ 22A (2) ROWS AT BN SPACING (4 LINES WHERE BN IS STAGGERED, 6 LINES WHERE 3 LINES OF NAILING IS REQD) 2 1/2" TYP
