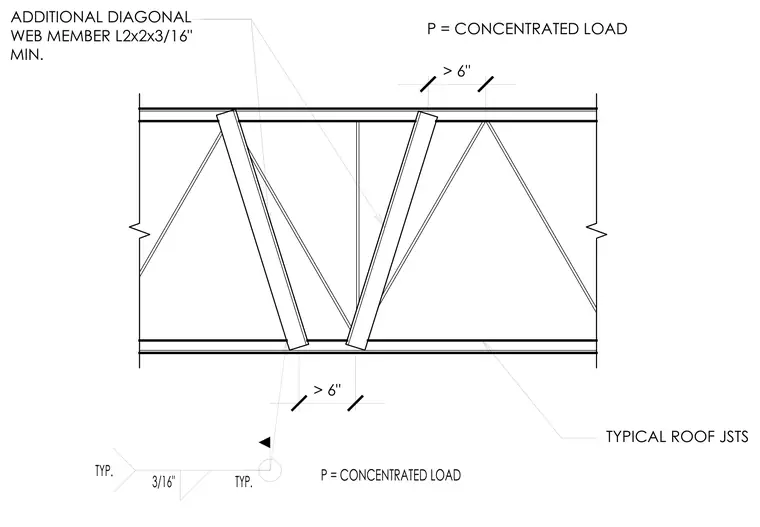

Additional diagonal web members consisting of L2x2x3/16-inch minimum angles are added to typical roof joists to accommodate concentrated loads greater than six inches. The reinforcing members are welded to the top and bottom chords with three-sixteenths-inch fillet welds typical at each connection.
> 6" P = CONCENTRATED LOAD TYP. 3/16" TYP. > 6" TYPICAL ROOF JSTS ADDITIONAL DIAGONAL WEB MEMBER L2x2x3/16" MIN. P = CONCENTRATED LOAD
