Structural · S-WNK2T

Column Base Plate and Gusset Connection at Concrete Footing

Materials

Concrete Reinforced Concrete Steel Masonry / CMU

Elements

Columns Walls Floors / Slabs Foundations / Footings Arches Bracing Anchors / Embeds Connections / Plates Reinforcing

Connections

Gusset Plate Base Plate / Anchorage Bracing Connection Bolted Connection Rebar Splice / Development

About this detail

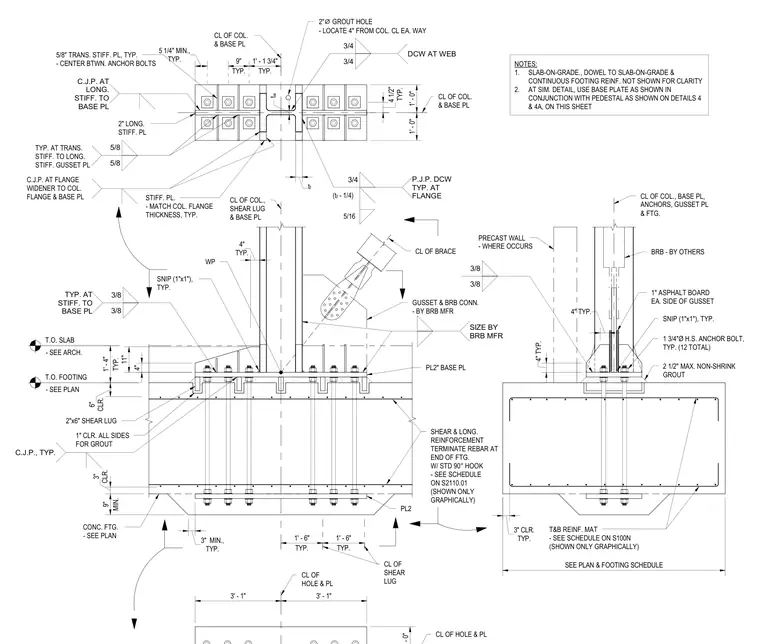

A structural steel column base plate rests on a reinforced concrete footing with non-shrink grout and multiple anchor bolts. A gusset plate connects a buckling-restrained brace to the column base, with stiffener plates welded to the column flanges and base plate using complete joint penetration and fillet welds. A 2-inch by 6-inch shear lug is embedded in the concrete footing beneath the base plate, surrounded by a 1-inch clearance for grout. The concrete footing includes top and bottom reinforcing mats with standard 90-degree hooks, while asphalt board is placed on each side of the gusset.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
