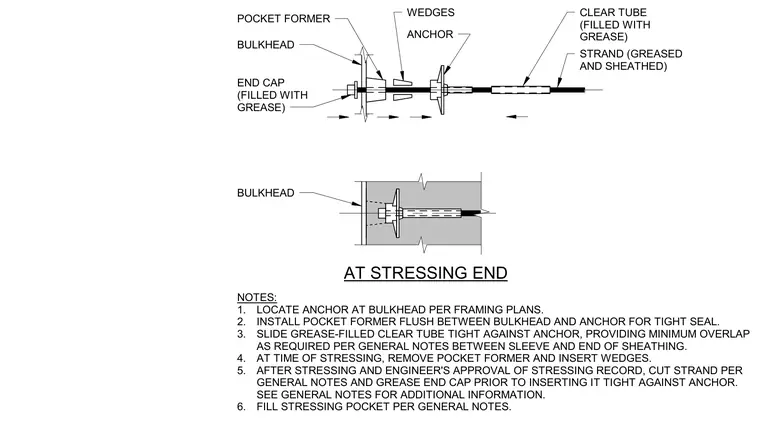

A post-tensioning anchor assembly at the stressing end features an anchor bearing against a bulkhead with a pocket former installed flush for a tight seal. A greased and sheathed strand passes through a clear grease-filled tube that overlaps the sheathing. Wedges are inserted into the pocket after removing the pocket former at the time of stressing. Following stressing and engineer's approval, the strand is cut and a grease-filled end cap is installed tightly against the anchor. The stressing pocket is then filled per general notes.
POCKET FORMER BULKHEAD END CAP (FILLED WITH GREASE) WEDGES ANCHOR CLEAR TUBE (FILLED WITH GREASE) STRAND (GREASED AND SHEATHED) BULKHEAD NOTES: 1. LOCATE ANCHOR AT BULKHEAD PER FRAMING PLANS. 2. INSTALL POCKET FORMER FLUSH BETWEEN BULKHEAD AND ANCHOR FOR TIGHT SEAL. 3. SLIDE GREASE-FILLED CLEAR TUBE TIGHT AGAINST ANCHOR, PROVIDING MINIMUM OVERLAP AS REQUIRED PER GENERAL NOTES BETWEEN SLEEVE AND END OF SHEATHING. 4. AT TIME OF STRESSING, REMOVE POCKET FORMER AND INSERT WEDGES. 5. AFTER STRESSING AND ENGINEER'S APPROVAL OF STRESSING RECORD, CUT STRAND PER GENERAL NOTES AND GREASE END CAP PRIOR TO INSERTING IT TIGHT AGAINST ANCHOR. SEE GENERAL NOTES FOR ADDITIONAL INFORMATION. 6. FILL STRESSING POCKET PER GENERAL NOTES. AT STRESSING END
