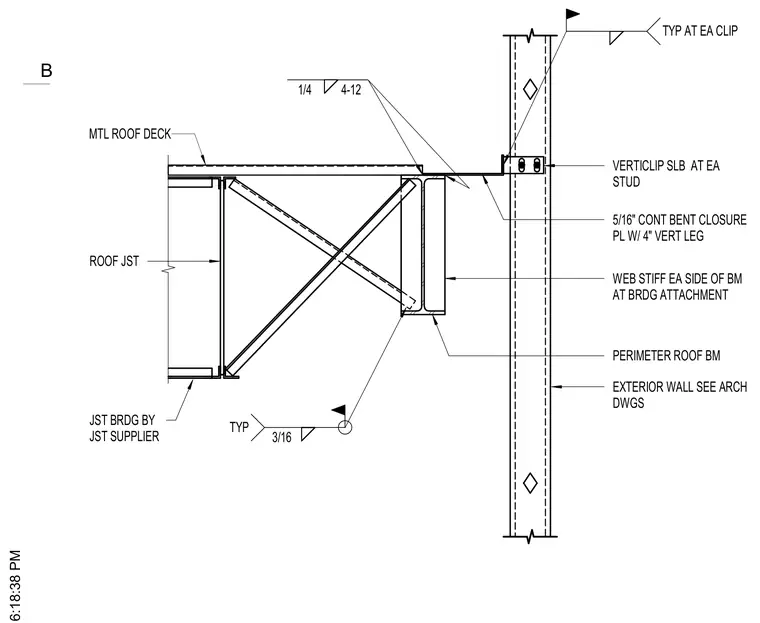

A roof joist connects to a perimeter roof beam with joist bridging provided by the joist supplier. Web stiffeners are welded to each side of the beam web at the bridging attachment with a three-sixteenths inch fillet weld. A five-sixteenths inch continuous bent closure plate featuring a four-inch vertical leg spans across the beam. A vertical slip clip fastens to each exterior wall stud with a quarter-inch fillet weld at four to twelve inches spacing typical at each clip.
VERTICLIP SLB AT EA STUD EXTERIOR WALL SEE ARCH DWGS 5/16" CONT BENT CLOSURE PL W/ 4" VERT LEG ROOF JST JST BRDG BY JST SUPPLIER WEB STIFF EA SIDE OF BM AT BRDG ATTACHMENT PERIMETER ROOF BM MTL ROOF DECK 3/16 TYP 1/4 4-12 TYP AT EA CLIP B
