An HSS8x8 girt with a half-inch end plate frames into a W8x35 outrigger beam, aligning flush at the top of steel. The outrigger attaches to a wide-flange column sized per plan with a five-sixteenth fillet weld. A three-and-one-half by three-and-one-half by one-half-inch angle, six inches long, secures the connection with two seven-eighths-inch diameter A325 bolts. An adjacent HSS12x12 girt also connects to the outrigger assembly with a half-inch end plate and a quarter-inch typical fillet weld.

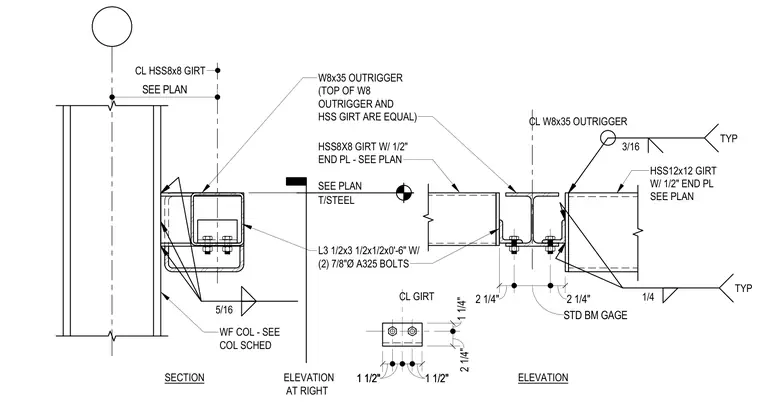

SECTION CL W8x35 OUTRIGGER 1/4 TYP 3/16 TYP ELEVATION 1 1/4" 2 1/4" HSS8X8 GIRT W/ 1/2" END PL - SEE PLAN WF COL - SEE COL SCHED L3 1/2x3 1/2x1/2x0'-6" W/ (2) 7/8"Ø A325 BOLTS W8x35 OUTRIGGER (TOP OF W8 OUTRIGGER AND HSS GIRT ARE EQUAL) 5/16 ELEVATION AT RIGHT T/STEEL SEE PLAN 2 1/4" STD BM GAGE 2 1/4" 1 1/2" 1 1/2" 1 1/2" 1 1/2" CL GIRT CL HSS8x8 GIRT HSS12x12 GIRT W/ 1/2" END PL SEE PLAN SEE PLAN
