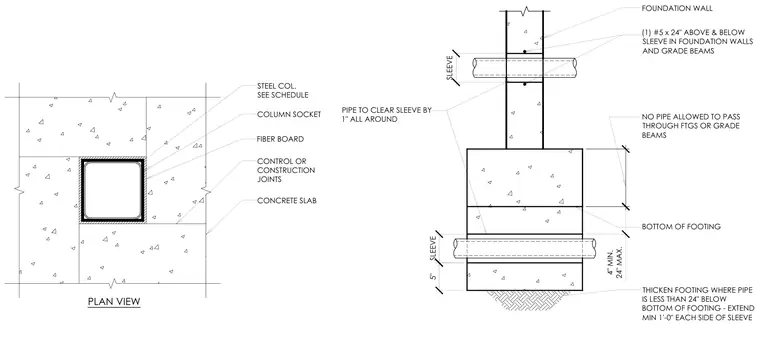

A pipe penetrates a concrete foundation wall and footing through a sleeve maintaining a one-inch clearance all around. Reinforcement consists of one number five bar by twenty-four inches long placed above and below the sleeve in foundation walls and grade beams. Footings are thickened where pipes run less than twenty-four inches below the bottom of the footing, extending a minimum of one foot on each side of the sleeve.
PIPE TO CLEAR SLEEVE BY 1" ALL AROUND FOUNDATION WALL (1) #5 x 24" ABOVE & BELOW SLEEVE IN FOUNDATION WALLS AND GRADE BEAMS NO PIPE ALLOWED TO PASS THROUGH FTGS OR GRADE BEAMS BOTTOM OF FOOTING THICKEN FOOTING WHERE PIPE IS LESS THAN 24" BELOW BOTTOM OF FOOTING - EXTEND MIN 1'-0" EACH SIDE OF SLEEVE 5" SLEEVE 4" MIN. 24" MAX. SLEEVE PLAN VIEW FIBER BOARD COLUMN SOCKET STEEL COL, SEE SCHEDULE CONTROL OR CONSTRUCTION JOINTS CONCRETE SLAB
