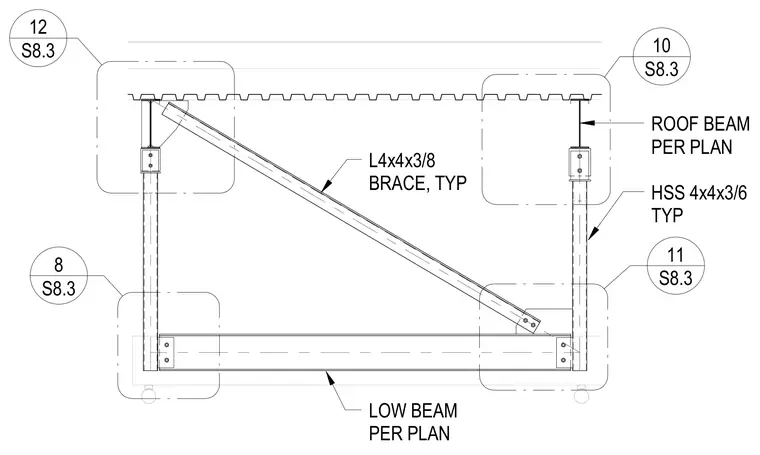

Roof beams per plan bear atop typical hollow structural section columns sized as HSS 4x4x3/16. A low beam per plan runs horizontally near the bottom, tied back with typical L4x4x3/8 angle braces connected to the framing. The assembly coordinates multiple structural steel members and detail references across sheet S8.3.
S8.3 8 S8.3 12 S8.3 10 S8.3 11 ROOF BEAM PER PLAN HSS 4x4x3/6 TYP LOW BEAM PER PLAN L4x4x3/8 BRACE, TYP
