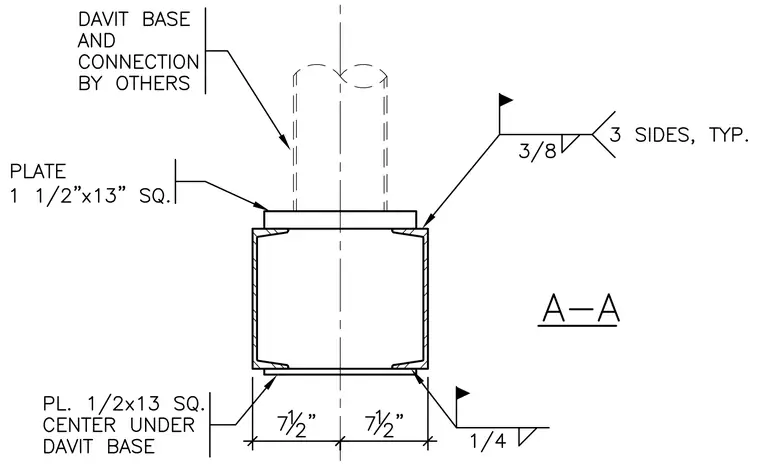

A davit base and connection by others sits on top of a 1-1/2 inch by 13-inch square plate, which is welded to a hollow structural section member with a three-eighths-inch fillet weld on three sides typically. A one-half-inch by 13-inch square plate is centered under the davit base and secured with a one-quarter-inch fillet weld.
