Structural · S-WN2W8

Step In Cantilevered Beam At Column

Materials

Metal (misc.)

Elements

Columns Beams Roofs Decks Arches

Connections

Welded Connection Bolted Connection

About this detail

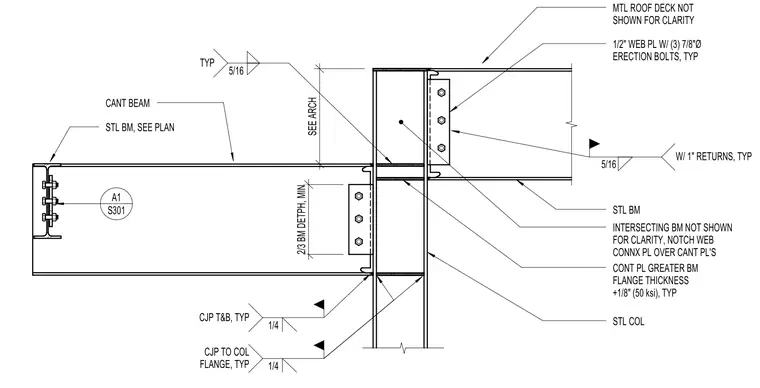

A step-in cantilevered steel beam frames into a structural steel column. The cantilever beam features a continuous plate greater than the beam flange thickness by one-eighth of an inch in 50 ksi steel, welded with complete joint penetration welds at the top and bottom with one-inch returns. The web connection plate is notched over the cantilever plates, and a half-inch web plate connects to the column flange using three seven-eighths-inch diameter erection bolts. Typical five-sixteenths fillet welds secure the intersecting framing members, while the metal roof deck is omitted for clarity.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
