Structural · S-WMV27

Steel Column Bearing Detail at Masonry Wall

Materials

Elements

Columns Walls Floors / Slabs Foundations / Footings

About this detail

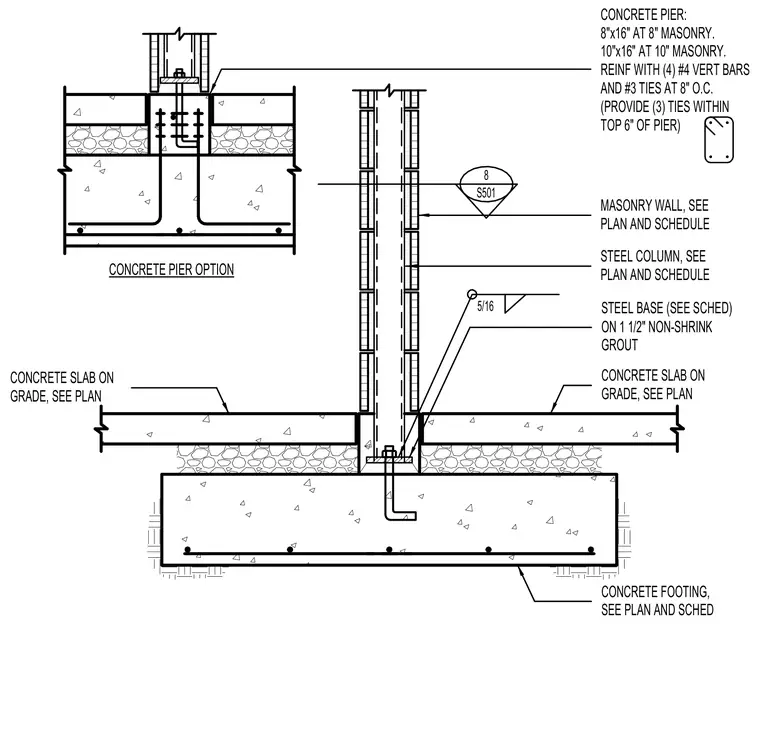

A structural steel column rests on a steel base plate set upon one and one-half inches of non-shrink grout. The base plate is anchored to a concrete footing or pier sized per plan and schedule. A concrete slab on grade abuts the pier and masonry wall assembly. The concrete pier option features an eight by sixteen inch dimension for eight inch masonry or ten by sixteen inch for ten inch masonry, reinforced with four number four vertical bars and number three ties at eight inches on center, including three ties within the top six inches of the pier.
