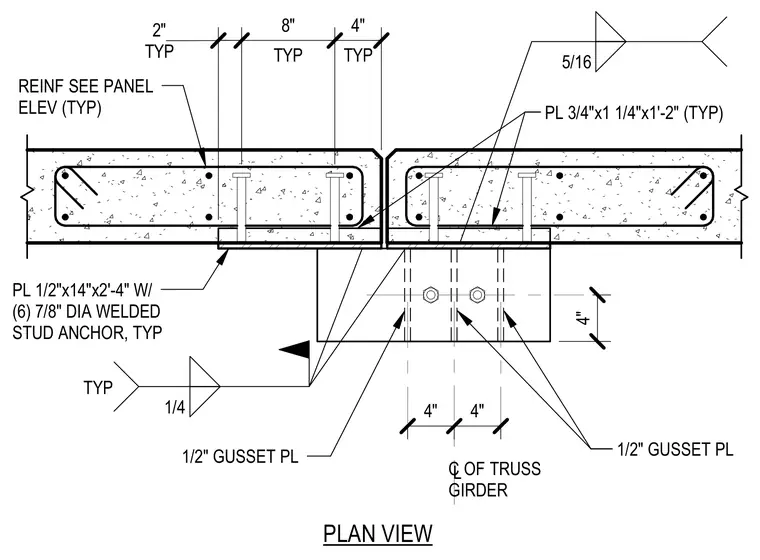

This plan detail shows a structural truss girder connection near a panel joint. A half-inch by fourteen-inch by two-foot-four-inch plate with six seven-eighth-inch diameter welded stud anchors is embedded in the panel. Additional reinforcement is provided as indicated in the panel elevation. A three-quarter-inch by one-and-one-quarter-inch by one-foot-two-inch plate and half-inch gusset plates are welded to the assembly with quarter-inch and five-sixteenth-inch fillet welds.
4" 4" C OF TRUSS GIRDER L 1/2" GUSSET PL PL 1/2"x14"x2'-4" W/ (6) 7/8" DIA WELDED STUD ANCHOR, TYP REINF SEE PANEL ELEV (TYP) PL 3/4"x1 1/4"x1'-2" (TYP) 5/16 1/4 TYP 1/2" GUSSET PL TYP 2" TYP 8" TYP 4" 4" PLAN VIEW
