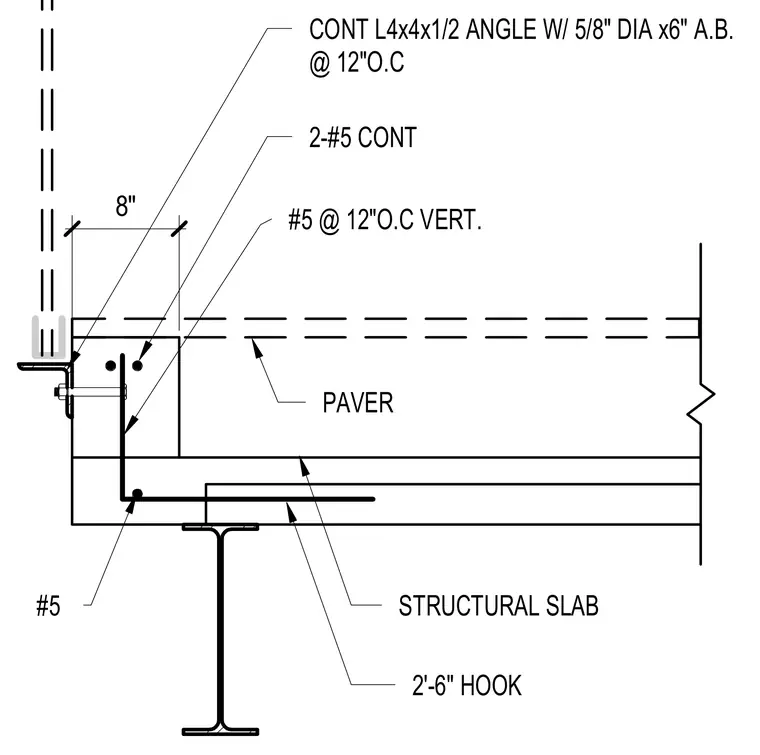

A continuous L4x4x1/2 structural steel angle mounts to the edge of an eight-inch concrete structural slab using five-eighths-inch diameter by six-inch anchor bolts spaced at twelve inches on center. The concrete edge is reinforced with two continuous number five rebars and vertical number five rebars spaced at twelve inches on center with a two-foot-six-inch hook. Pavers finish the top of the structural slab, and a glass railing assembly is secured to the steel mounting angle.
8" 2-#5 CONT #5 @ 12"O.C VERT. CONT L4x4x1/2 ANGLE W/ 5/8" DIA x6" A.B. @ 12"O.C PAVER STRUCTURAL SLAB 2'-6" HOOK #5
