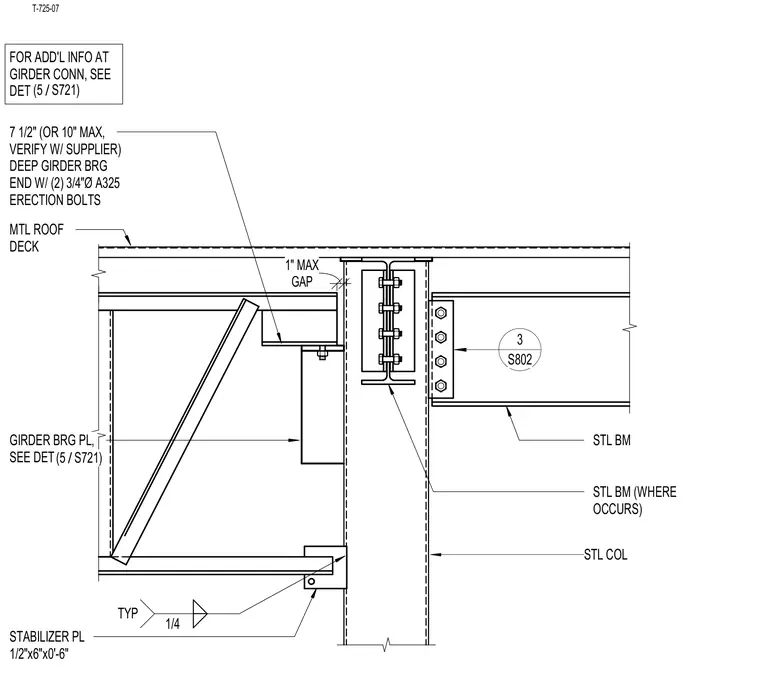

A deep steel girder bearing end connects to the steel column with two three-quarter-inch diameter A325 erection bolts, maintaining a one-inch maximum gap. A stabilizer plate measuring one-half inch by six inches by zero feet six inches is welded with a one-quarter-inch typical fillet weld to the lower assembly. A secondary steel beam frames into the opposite flange of the column using a bolted connection. The metal roof deck bears across the top of the structural framing.
STL COL 7 1/2" (OR 10" MAX, VERIFY W/ SUPPLIER) DEEP GIRDER BRG END W/ (2) 3/4"Ø A325 ERECTION BOLTS STABILIZER PL 1/2"x6"x0'-6" 1/4 TYP MTL ROOF DECK GAP 1" MAX FOR ADD'L INFO AT GIRDER CONN, SEE DET / (5 S721) 3 S802 STL BM STL BM (WHERE OCCURS) GIRDER BRG PL, SEE DET / (5 S721) T-725-07
