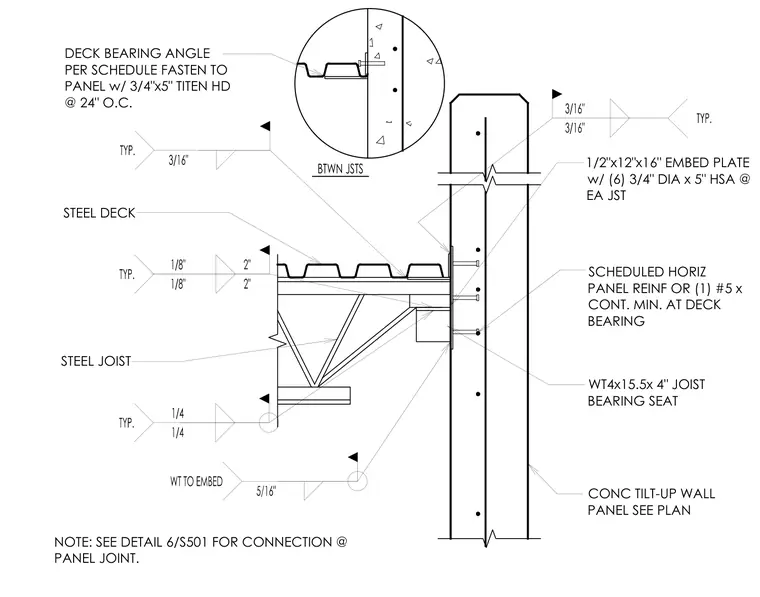

An open-web steel joist bears on a WT4x15.5x4-inch joist bearing seat welded to a 1/2-inch by 12-inch by 16-inch embed plate set into a concrete tilt-up wall panel. The embed plate is anchored with six 3/4-inch diameter by 5-inch heavy stud anchors at each joist. Scheduled horizontal panel reinforcement or one continuous number five rebar is provided at the deck bearing. A steel deck bears across the top chord and is supported by a deck bearing angle fastened to the panel with 3/4-inch by 5-inch Titen HD anchors at 24 inches on center. Fillet welds secure the structural steel components according to the indicated sizes.
NOTE: SEE DETAIL 6/S501 FOR CONNECTION @ PANEL JOINT. STEEL JOIST STEEL DECK CONC TILT-UP WALL PANEL SEE PLAN WT4x15.5x 4" JOIST BEARING SEAT 1/2"x12"x16" EMBED PLATE w/ (6) 3/4" DIA x 5" HSA @ EA JST SCHEDULED HORIZ PANEL REINF OR (1) #5 x CONT. MIN. AT DECK BEARING DECK BEARING ANGLE PER SCHEDULE FASTEN TO PANEL w/ 3/4"x5" TITEN HD @ 24" O.C.
