Structural · S-WME55

Pe3 Elevator Pit Section

Materials

Elements

Arches Beams Floors / Slabs Foundations / Footings Reinforcing Walls Waterproofing / Flashing

About this detail

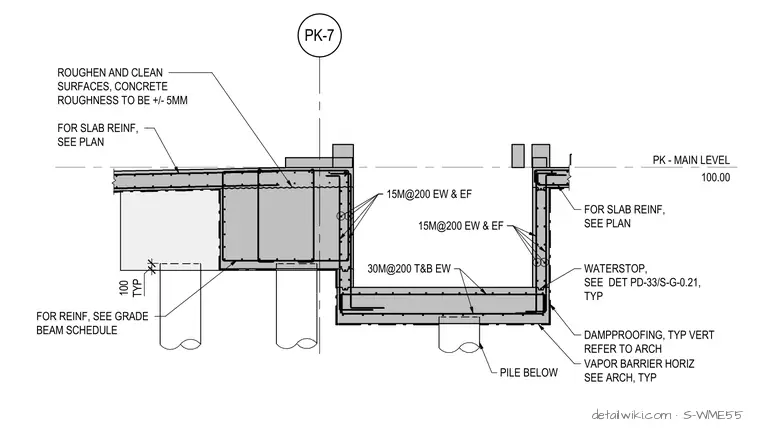

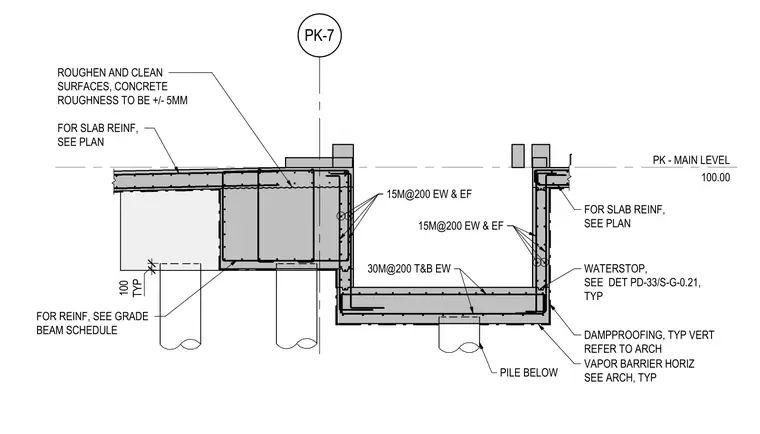

A reinforced concrete elevator pit is set on piles with specified vertical and horizontal reinforcement. The base slab incorporates 30M reinforcing bars at 200 millimeters spacing top and bottom each way over piles below. Pit walls feature 15M reinforcing bars at 200 millimeters spacing each way and each face, with typical dampproofing and a horizontal vapor barrier referenced to architectural drawings. A waterstop is detailed at the construction joint per detail PD-33/S-G-0.21. Concrete surfaces at joints are specified to be roughened and cleaned to plus or minus 5 millimeters. Slab reinforcement and grade beam details are coordinated with structural plans and schedules.
