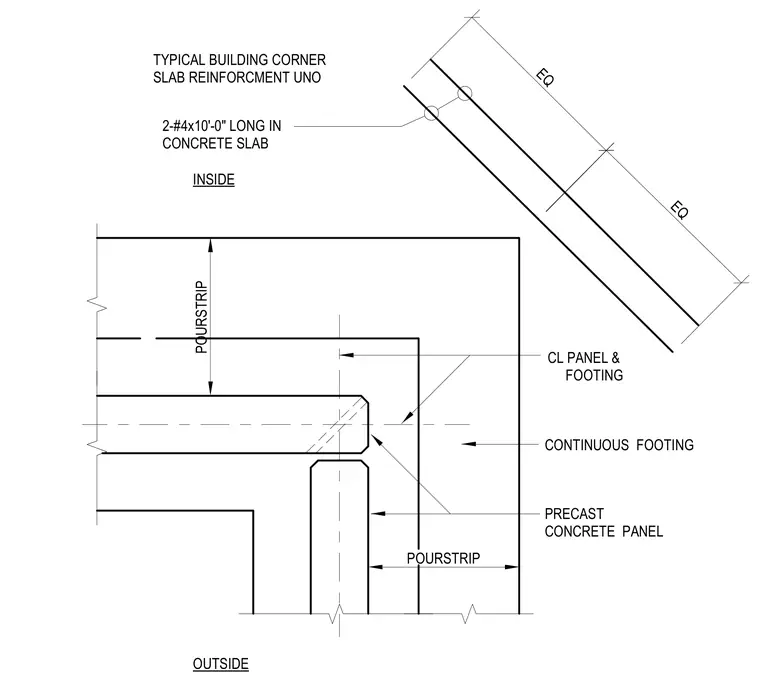

Two number four reinforcing bars measuring ten feet long are placed within the concrete slab at the building corner. A pour strip runs along the inside perimeter adjacent to the continuous footing and precast concrete panels. The centerlines of the panel and footing align with equal dimensions spaced along the corner configuration.
EQ EQ POURSTRIP POURSTRIP INSIDE OUTSIDE 2-#4x10'-0" LONG IN CONCRETE SLAB TYPICAL BUILDING CORNER SLAB REINFORCMENT UNO CL PANEL & FOOTING CONTINUOUS FOOTING PRECAST CONCRETE PANEL
