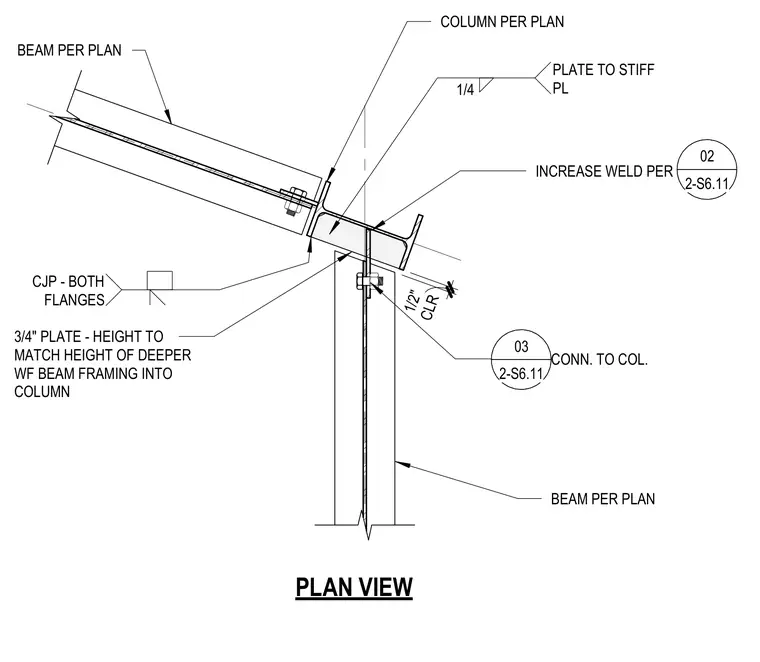

A skewed steel beam frames into a column using a three-quarter-inch plate matching the height of the deeper wide-flange beam. A one-half-inch clearance is maintained between framing elements. Complete joint penetration welds are applied to both beam flanges at the column connection. A one-quarter-inch fillet weld secures the plate to the stiffener plate. Field connections are detailed with reference bubbles pointing to related sheets.
BEAM PER PLAN BEAM PER PLAN PLAN VIEW COLUMN PER PLAN CLR 1/2" 3/4" PLATE - HEIGHT TO MATCH HEIGHT OF DEEPER WF BEAM FRAMING INTO COLUMN INCREASE WELD PER CJP - BOTH FLANGES CONN. TO COL. 1/4 PLATE TO STIFF PL 02 2-S6.11 03 2-S6.11
