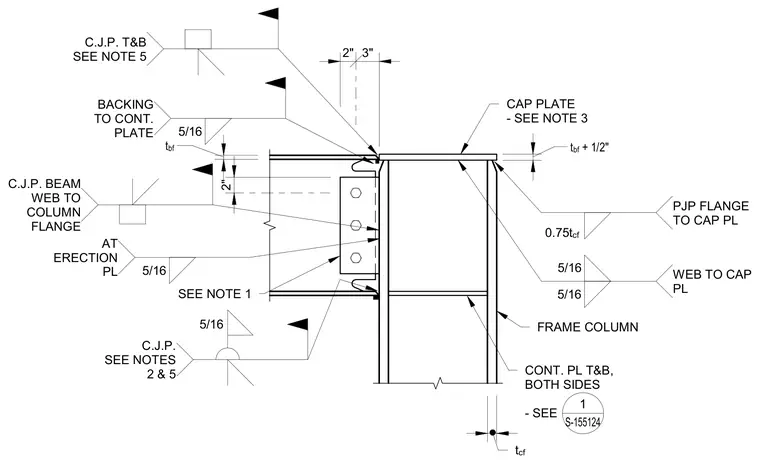

A structural steel beam frames into a column with complete joint penetration groove welds at the top and bottom flanges. A cap plate with a thickness equal to the beam flange thickness plus one-half inch sits atop the frame column, connected via partial joint penetration and five-sixteenth-inch fillet welds. Continuous plates are welded on both sides inside the column. A beam web connects to the column flange using an erection plate secured with bolts and five-sixteenth-inch fillet welds.
C.J.P. T&B SEE NOTE 5 FRAME COLUMN 2" 2" 3" CONT. PL T&B, BOTH SIDES - SEE 1 S-155124 t bf + 1/2" CAP PLATE - SEE NOTE 3 5/16 5/16 WEB TO CAP PL PJP FLANGE TO CAP PL 0.75t cf t bf t cf C.J.P. SEE NOTES 2 & 5 5/16 BACKING TO CONT. PLATE 5/16 SEE NOTE 1 5/16 AT ERECTION PL C.J.P. BEAM WEB TO COLUMN FLANGE
