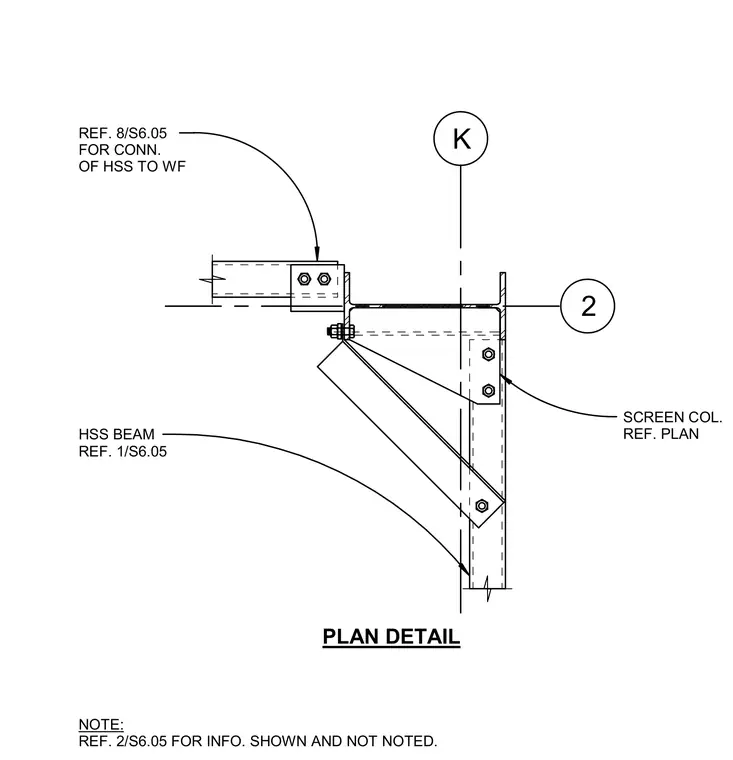

An HSS beam frames into a wide flange screen column utilizing a bolted connection configuration. Reference callouts direct the installer to associated details for the structural steel assembly and screen column alignment. A diagonal bracing member ties into the gusset plate assembly.
K 2 REF. 8/S6.05 FOR CONN. OF HSS TO WF SCREEN COL. REF. PLAN HSS BEAM REF. 1/S6.05 PLAN DETAIL NOTE: REF. 2/S6.05 FOR INFO. SHOWN AND NOT NOTED.
