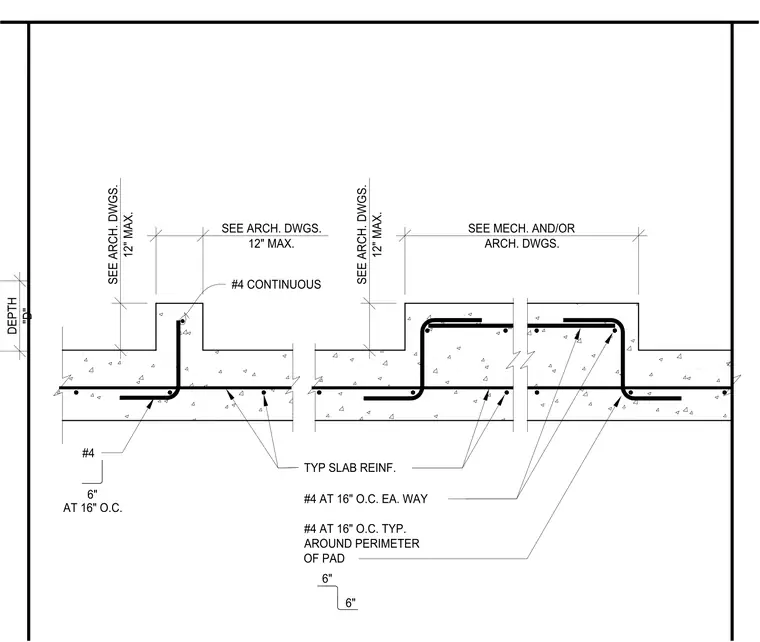

Number four continuous reinforcing bars are located within the curb, with number four bars spaced at sixteen inches on center each way within the slab. Slab reinforcement is typical, supplemented by additional number four bars at sixteen inches on center around the perimeter of the pad. Curb dimensions and spacing are governed by architectural and mechanical drawings, with a maximum twelve-inch offset specified. The assembly integrates with the standard slab reinforcement to maintain structural continuity through the pad and curb transition.
