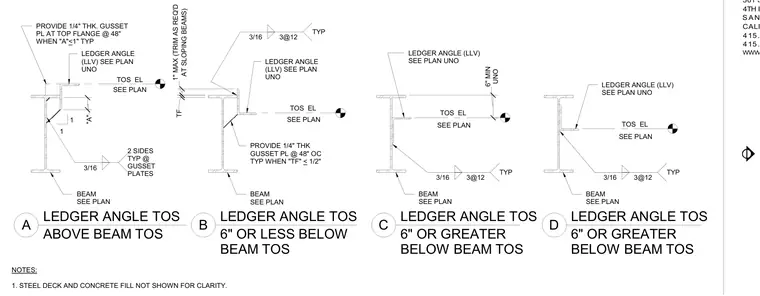

Ledger angles are supported by structural steel wide-flange beams at varying vertical alignments. Detail A features a ledger angle positioned above the beam top of steel, requiring a one-quarter-inch thick gusset plate spaced at forty-eight inches on center when dimension A is less than one inch, connected with three-sixteenth-inch fillet welds on two sides. Detail B employs a ledger angle positioned six inches or less below the beam top of steel, utilizing a one-quarter-inch thick gusset plate spaced at forty-eight inches on center when the top flange thickness is one-half inch or less. Details C and D incorporate ledger angles positioned six inches or greater below the beam top of steel, welded with three-sixteenth-inch fillet welds at twelve inches on center. Steel deck and concrete fill are omitted for clarity.
1 1 6" OR LESS BELOW BEAM TOS LEDGER ANGLE TOS LEDGER ANGLE TOS A B LEDGER ANGLE TOS LEDGER ANGLE TOS 6" OR GREATER BELOW BEAM TOS C D SEE PLAN TOS EL PROVIDE 1/4" THK GUSSET PL @ 48" OC TYP WHEN "TF" < 1/2" SEE PLAN TOS EL LEDGER ANGLE (LLV) SEE PLAN UNO PROVIDE 1/4" THK. GUSSET PL AT TOP FLANGE @ 48" WHEN "A"<1" TYP TOS EL SEE PLAN TOS EL SEE PLAN NOTES: 1. STEEL DECK AND CONCRETE FILL NOT SHOWN FOR CLARITY. LEDGER ANGLE (LLV) SEE PLAN UNO BEAM SEE PLAN LEDGER ANGLE (LLV) SEE PLAN UNO LEDGER ANGLE (LLV) SEE PLAN UNO BEAM SEE PLAN BEAM SEE PLAN BEAM SEE PLAN 6" OR GREATER BELOW BEAM TOS TF AT SLOPING BEAMS) 1" MAX (TRIM AS REQ'D UNO 6" MIN ABOVE BEAM TOS "A" 3/16 2 SIDES TYP @ GUSSET PLATES 3/16 3@12 TYP 3/16 3@12 TYP 3/16 3@12 TYP 5 4 SAN CA L IFORNIA 415.489.2224 415.358.9100 WWW W 01 SECOND STREET TH F
