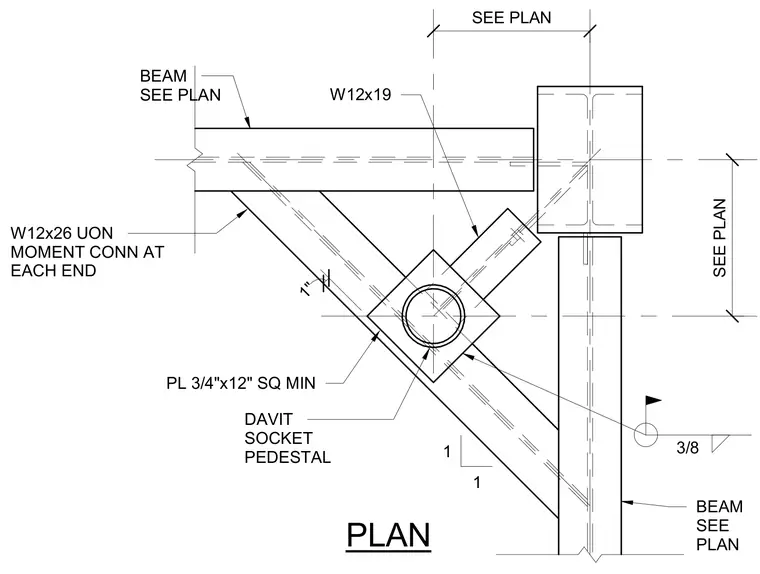

A square three-quarter-inch by twelve-inch minimum plate supports a davit socket pedestal positioned near a structural steel corner column. A W12x19 beam frames into the pedestal assembly, while W12x26 members with moment connections at each end provide structural support as indicated on plan. Fillet welds of three-eighths inch size secure the connection elements.
PLAN W12x26 UON MOMENT CONN AT EACH END PL 3/4"x12" SQ MIN DAVIT SOCKET PEDESTAL 1 1 BEAM SEE PLAN W12x19 BEAM SEE PLAN SEE PLAN 1" 3/8 SEE PLAN
