An underhung equipment support assembly is suspended from overhead structural steel beams or open-web joists sized per plan. The support frame utilizes C6x8.2 channel members with a maximum allowable supported load of six hundred pounds unless noted otherwise. Hanger rods from the manufacturer provide suspension, supplemented by L6x4x3/8 by zero-foot-six-inch long leg vertical angles and three-sixteenth-inch fillet welds on three sides typically. Seismic bracing is included as required per structural notes. Equipment is coordinated per other discipline drawings.

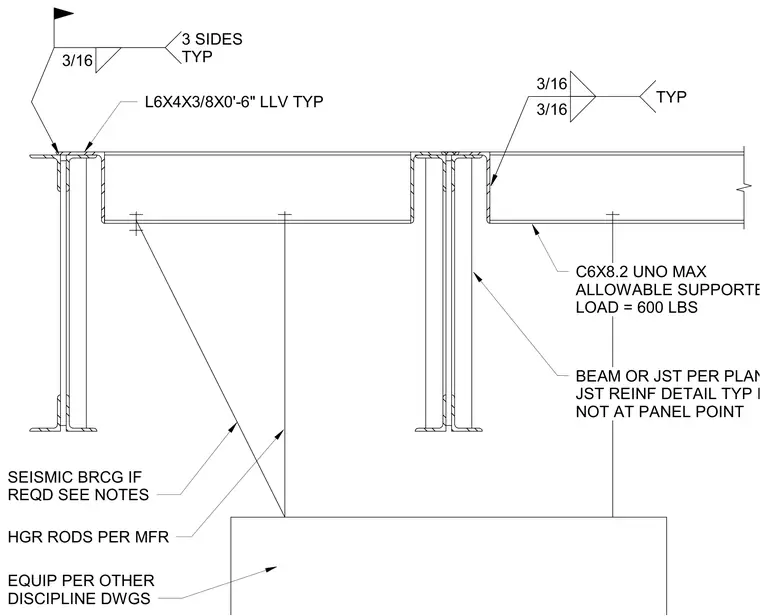

HGR RODS PER MFR C6X8.2 UNO MAX ALLOWABLE SUPPORTED LOAD = 600 LBS EQUIP PER OTHER DISCIPLINE DWGS L6X4X3/8X0'-6" LLV TYP SEISMIC BRCG IF REQD SEE NOTES BEAM OR JST PER PLAN JST REINF DETAIL TYP IF NOT AT PANEL POINT 3/16 3/16 TYP 3/16 3 SIDES TYP
