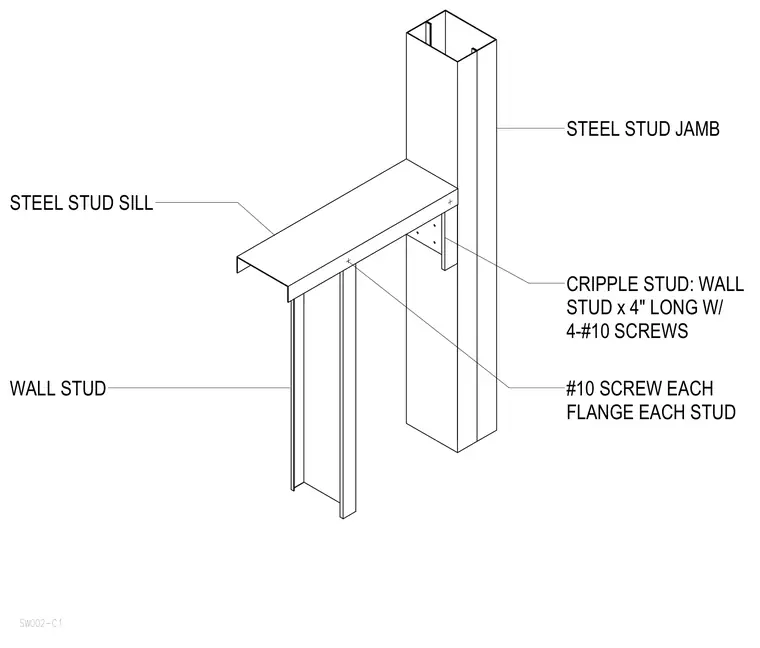

The steel stud sill bears on top of a vertical wall stud and intersects a vertical steel stud jamb. A cripple stud measuring four inches long fastens to the jamb using four number ten screws. The sill secures to the framing with number ten screws at each flange of each stud.
STEEL STUD JAMB STEEL STUD SILL WALL STUD SW002-C1 CRIPPLE STUD: WALL STUD x 4" LONG W/ 4-#10 SCREWS #10 SCREW EACH FLANGE EACH STUD
