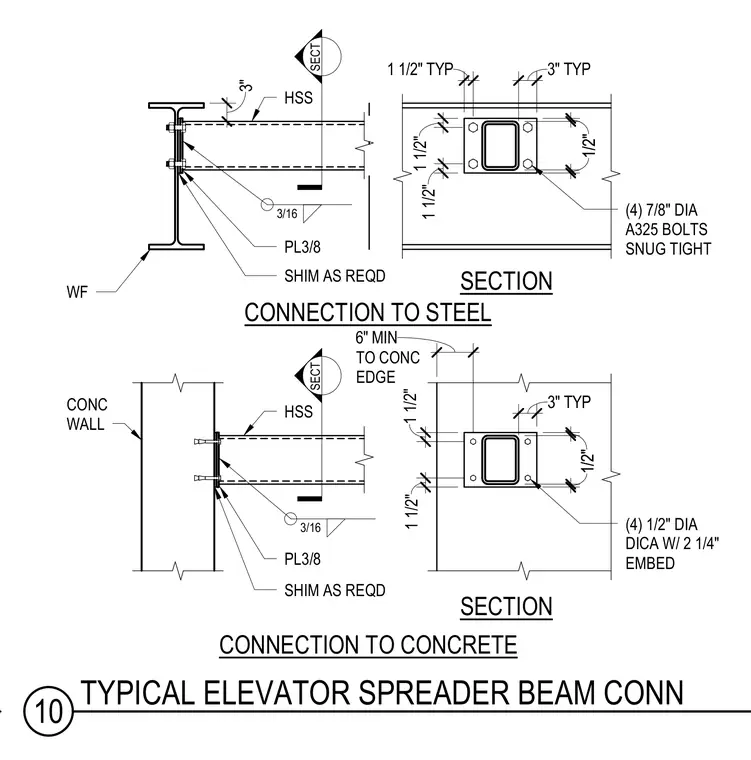

An elevator spreader beam constructed from a hollow structural section connects to a wide-flange steel member or a concrete wall. The steel connection utilizes a three-eighths-inch plate welded with a three-sixteenths-inch fillet weld, shimmed as required, and secured with four seven-eighths-inch diameter ASTM A325 bolts tightened snug. The concrete connection secures to a concrete wall using a three-eighths-inch plate welded with a three-sixteenths-inch fillet weld and four half-inch diameter anchors with a two-and-a-quarter-inch embedment and six-inch minimum edge distance.
SECT SECT CONNECTION TO STEEL CONNECTION TO CONCRETE SECTION SECTION PL3/8 SHIM AS REQD HSS WF 3/16 (4) 7/8" DIA A325 BOLTS SNUG TIGHT PL3/8 SHIM AS REQD HSS CONC WALL 3/16 TO CONC EDGE (4) 1/2" DIA DICA W/ 2 1/4" EMBED 6" MIN 1 1/2" 1 1/2" 1/2" 1/2" 3" TYP 1 1/2" 1 1/2" 1 1/2" TYP 3" TYP 1/2" 1/2" 3" 10 TYPICAL ELEVATOR SPREADER BEAM CONN
