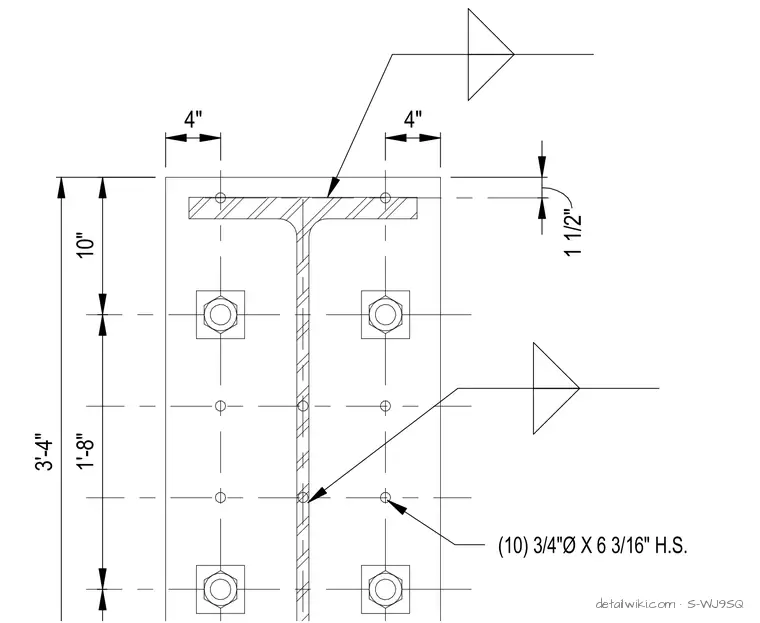

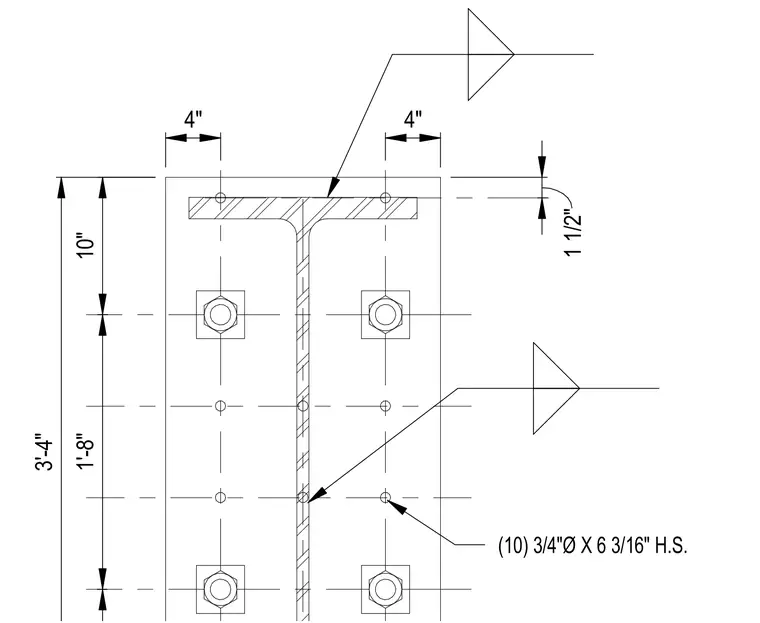

This structural connection detail features a steel section secured with ten three-quarter-inch diameter high-strength bolts measuring six and three-sixteenths inches long. The assembly plate dimensions are laid out with a total length of three feet four inches and intermediate spacings of one foot eight inches and ten inches. Edge distances and bolt spacing patterns are clearly dimensioned at four inches horizontally and one and one-half inches vertically from the top edge.
4" 4" 10" 1'-8" 3'-4" 1 1/2" (10) 3/4"Ø X 6 3/16" H.S.
