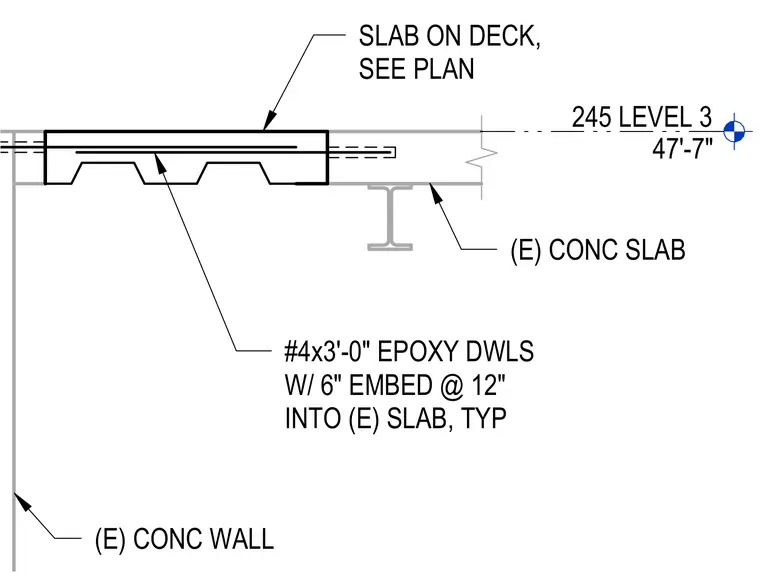

A slab on metal deck connects to an existing concrete wall at Level 3, set at elevation 47 feet 7 inches. Number 4 epoxy dowels measuring 3 feet 0 inches long provide the structural tie, featuring a 6-inch embedment into the existing concrete slab at 12 inches on center typically.
245 LEVEL 3 47'-7" (E) CONC WALL (E) CONC SLAB SLAB ON DECK, SEE PLAN #4x3'-0" EPOXY DWLS W/ 6" EMBED @ 12" INTO (E) SLAB, TYP
