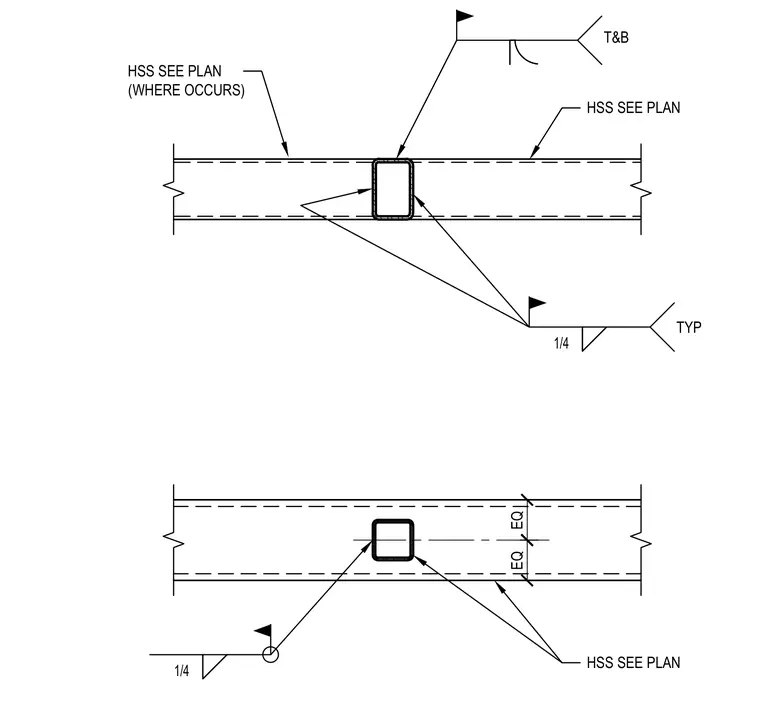

Two framing elevations detail the connection of hollow structural section members sized per plan. Field welds with a quarter-inch fillet size join the structural elements symmetrically spaced about centerlines. Additional top and bottom weld callouts secure the members where indicated.
